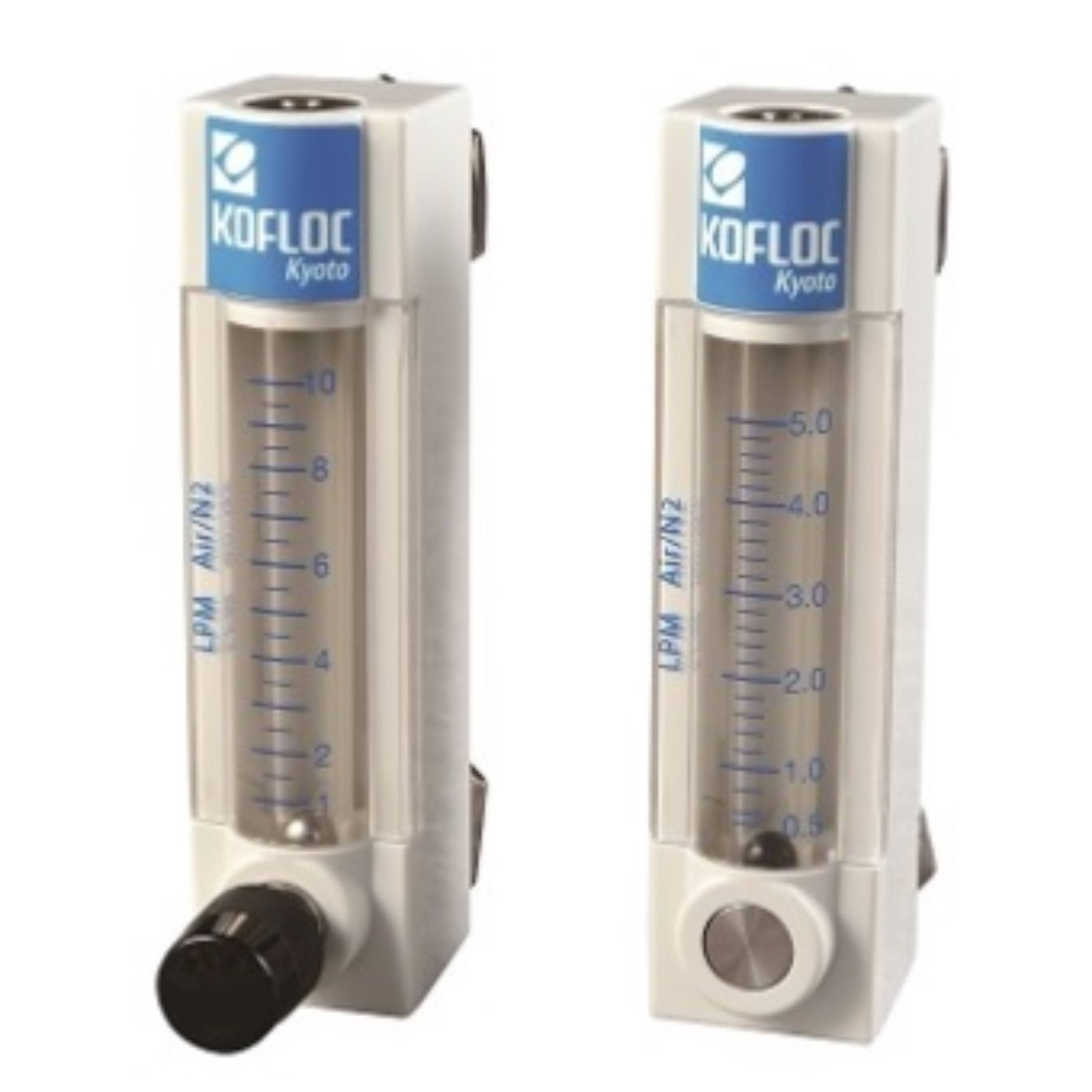

Kofloc Resin Flow Meter Model RK20T Series
Kofloc Resin Flow Meter Model RK20T Series
KOFLOC

Kofloc Resin Flow Meter Model RK20T Series

Order upon Request
SKU: RK20T-V-Air/N2-0.5L/min
$ 104.92

Still have questions? Ask our experts!

Email +1 (520) 789-6673

Kofloc Resin Flow Meter Model RK20T Series

Buy KOFLOC Products from MSE Supplies at the best value.

  • Fluid:
    • Gas Air/N₂ Liquid: WATER
  • Flow range:
    • Gas　Air/N₂　0.5～100L/min
    • Liquid: 25～2800mL/min
  • Accuracy:
    • ±6%F.S.
  • Low price.
  • Short delivery time.

Download Manual

Drawings

Specifications:

MODEL

RK20T

Applicable fluids

Air / N2

WATER

Flow rate range (atm condition for gas)

0.05 to 0.5L/min, 0.15 to 1L/min,
0.5 to 5L/min, 1 to 10L/min, 2.5 to 25L/min
5 to 50L/min, 20 to 100L/min

2.5 to 25mL/min, 30 to 300mL/min,
100 to 800mL/min, 200 to 1600mL/min,
500 to 2800mL/min

Accuracy

±6%F.S.

Proof pressure

0.7MPa(G)

Max. working temperature

65°C

Materials of parts in contact with fluid

ABS, Acryl, SUS303, FKM, POM, (Hard glass, SUS316, SUS304)

Connection

Rc1/4

Weight

Approx. 150g
