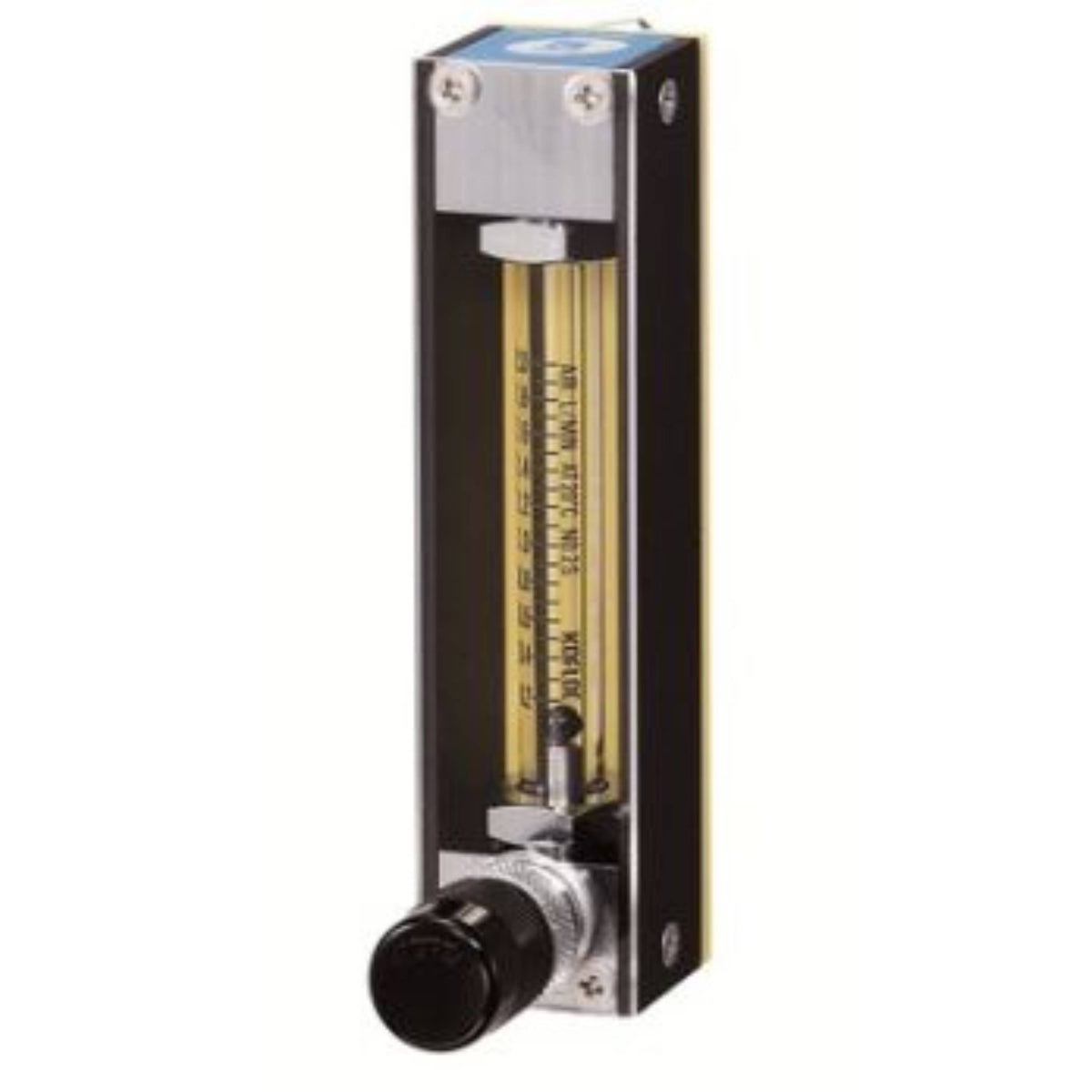

Kofloc Purge Flow Meter with Needle Valve
Regular price
$ 282.95
Couldn't load pickup availability
Still have questions? Ask our experts!
Kofloc Purge Flow Meter with Needle Valve
Buy KOFLOC Products from MSE Supplies at the best value.
-
Fluid:
- Gas N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
- Gas N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
-
Flow range:
- Gas 1～20L/min
- Gas 1～20L/min
-
Accuracy:
- ±5%F.S.
- Compact design.
- RoHS.
![]()
Specifications:
|
MODEL |
RK1600R |
|
Applicable fluids |
N2, Air, H2, He, Ar, O2, CO2, etc. |
|
Max flow rate (Air atm condition) |
1, 2, 3, 5, 10, 15, 20L/min |
|
Effective scale |
10:1 |
|
Accuracy |
±5%F.S. |
|
Proof pressure |
5L/min or less: 0.7MPa(G) 10L/min or more: 0.5MPa(G) |
|
Max working temperature |
60°C |
|
Materials of parts in contact with fluid |
S: SUS304, Hard glass, FKM, PCTFE, SUS316, SUS303, (PTFE) B: Brass, Hard glass, NBR, POM, SUS316, SUS303, (PTFE) |
|
Connection |
Rc1/8 |
|
Weight |
Approx. 250g |
