Kofloc Flow Meter with Precision Needle Valve Model RK1200 Series - Flow Meters - KOFLOC - MSE Supplies

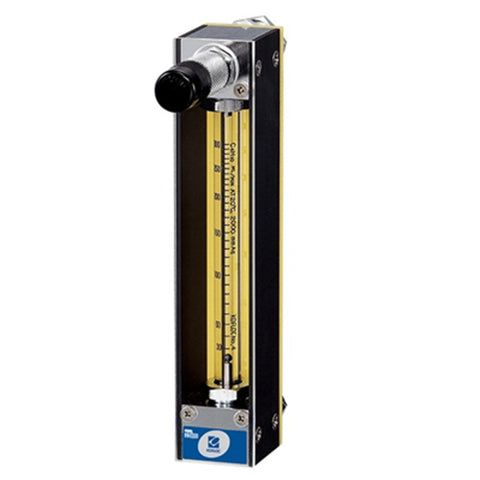

Kofloc Flow Meter with Precision Needle Valve Model RK1200 Series

SKU: RK1200-12-SS-5mL/min

  • $ 74995
  • Save $ 8133

Request a Quote

Kofloc Flow Meter with Precision Needle Valve Model RK1200 Series

Buy KOFLOC Products from MSE Supplies at the best value.

  • Fluid：
    • Gas　N₂,Air,H₂,He,Ar,O₂,CO₂ etc.　
    • Liquid　H₂O
  • Flow range：
    • Gas　5mL/min～100L/min
    • Liquid　5mL/min～2L/min
  • Accuracy：±2%F.S.
  • Wide varieties of flow range available from ultra-minute flows to large flows.
  • Highly accurate measurement of ±2%F.S. or better.
  • Wide variations for various usage conditions.
  • Superior control performance by needle valve in the non-rotary structure.
  • Valve arrangement available at the top.
  • RoHS

Download Manual

Drawings

Specifications:

MODEL

RK1200

Applicable fluids

N2, Air, H2, He, Ar, O2, CO2, etc.

H2O

Max flow rate
(Air atm condition for gas)

5mL/min to 100L/min
(See the Capacity Table below)

5mL/min to 2L/min
(See the Capacity Table below)

Effective scale

10:1

Accuracy

±2%F.S.

Proof pressure

100mL/min or less: 1MPa(G)
5L/min or less: 0.7MPa(G)
10L/min or more: 0.5MPa(G)

5mL/min or less: 1MPa(G)
150mL/min or less: 0.7MPa(G)
200mL/min or more: 0.5MPa(G)

Max working temperature

60°C

Materials of parts in contact with fluid

SS: SUS316, Hard glass, FKM, PCTFE, (PTFE)
B: Brass, Hard glass, NBR, POM, SUS316, (PTFE)

Connection

Rc1/4

Weight

Approx. 450g
