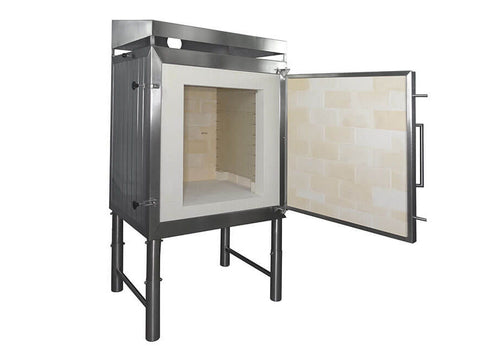

Gas technology – simple and safe
The XG model series provides optimum temperature distribution thanks to the downdraught flame control. As well as being independent of electrical connections, the possibility of firing under a reduction atmosphere is a particularly strong argument in favour of using gas kilns. However, this reduction firing requires a certain amount of firing experience, since reduction firing is not easy to reproduce. Each item that is fired is slightly different – and therefore unique.
The KITTEC gas kilns are equipped with burners for propane/butane as standard. However, we can also offer natural gas heating systems.
One of the outstanding quality characteristics of the KITTEC gas kilns is the so-called downdraught flame control, which provides absolutely even temperature distribution in the entire kiln. The best prerequisites for gas kiln professionals.
Further features of model series XG:
- ESP Energy Saving Package: High-quality and innovative multi-layer premium insulation makes fast heating-up possible, even in the upper temperature range.
- Manually controllable damper
- Stable SiC ceiling plate, no contamination from above
- Includes CO alarm
- Pressure regulator with manometer (including all fittings between burner and gas supply), simple and safe gas technology in accordance with the DVGW
- Temperature indicator (battery-powered)
- Continuous mortar-free brick lining reduces cracking
- Housing and frame made from rust-proof stainless steel
- Extremely solid lightweight refractory brick ASTM 26 in regions with considerable mechanical stress
- Wide door opening angle for easy loading (approx. 150°)
- Stainless steel exhaust hood in the centre at the rear
(with flue connection ø 150–200 mm) - Thermocouple for temperature measurement, installed with protection
- Base with cross strut for easy transportation using a lift truck
- Customised products by request
