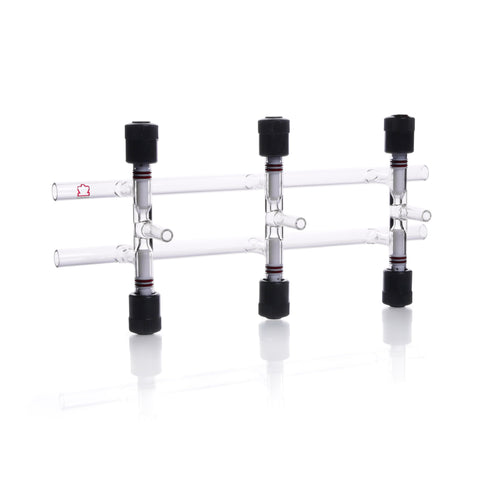

KIMBLE® KONTES® Double Vacuum and Gas Manifold with PTFE Valves
SKU: DWK216060-0000
KIMBLE® KONTES® Double Vacuum and Gas Manifold with PTFE Valves
Buy DWK Life Sciences products from MSE Supplies at the best value.
This manifold is for connecting inert gas and vacuum sources.
- 4 mm PTFE vacuum valves provide grease-free fine control
- Sample contacts only PTFE and borosilicate glass
- Beams are 1/2" (12.7 mm) OD
- Upper-left and lower-right ends open
- Ports have 9 mm OD openings
- Distance between valves is 100 mm
| Catalog No | Overall Height (mm) | Width (mm) | Depth (mm) | Number of Places | Pack Size |
|---|---|---|---|---|---|
| 216060-0000 | 148 | 500 | 83 | 5 | Case of 1 |
| 216060-0003 | 148 | 300 | 83 | 3 | Case of 1 |
| 216140-0003 | 148 | 400 | 83 | 3 | Case of 1 |
| 216140-0004 | 148 | 500 | 83 | 4 | Case of 1 |
| 216140-0005 | 148 | 600 | 83 | 5 | Case of 1 |
