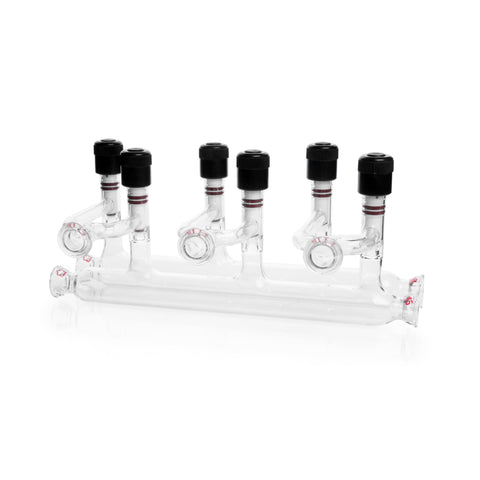

KIMBLE® HI-VAC® Vacuum Manifold, Double
SKU: DWK216040-0003
KIMBLE® HI-VAC® Vacuum Manifold, Double
Buy DWK Life Sciences products from MSE Supplies at the best value.
Double vacuum gas manifold with HI-VAC® valves designed for grease-free operation
- Incorporates reliable HI-VAC® valves, with size 15 O-Ring connectors and size 116 FKM O-Rings
- Designed for use with 211320 adapters
- Forward-facing valves allow easy access
- Compact enough for ease of assembly within a fume hood, thereby protecting the researcher from noxious chemicals
- Unit is modular in concept, allowing experiments to be done with maximum flexibility
- Can easily be disassembled for cleaning if necessary
- Two size 110 FKM O-Rings and one size 011 FKM tip O-Ring
- Ports are spaced 100 mm apart
| Catalog No | Overall Length (mm) | Overall Height (mm) | Depth (mm) | Number of Places | Pack Size |
|---|---|---|---|---|---|
| 216040-0003 | 325 | 160 | 140 | 3 | Case of 1 |
| 216040-0004 | 425 | 160 | 140 | 4 | Case of 1 |
| 216040-0005 | 525 | 160 | 140 | 5 | Case of 1 |
