Kern Video Microscope OIV 902
SKU: OIV 902
Kern Video Microscope OIV 902
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a (Input product type: compound microscope, polarimeter, Refractometer, Microscope Camera, etc.) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
The entry level video microscope with bright image reproduction and intuitive operation
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features:
- The KERN OIV-9 is a video microscope which has been constructed to optimise digital stereo microscopy. Our well-conceived, comprehensive solution with axial optical unit enables immediate, simple display of your samples on the screen
- The LED incident illumination unit (ring) included as standard guarantees the very best illumination of your sample
- The excellent optical unit enables continuous sharp image tracking across the entire zoom range from 0,7 x - 4,5 x
- The powerful 5.0 megapixel camera of the microscope without eyepiece has a high level of colour reproduction and offers smooth live monitoring of your samples using the HD monitor
- The high-quality display made from toughened glass is easy to clean due to the absence of edges

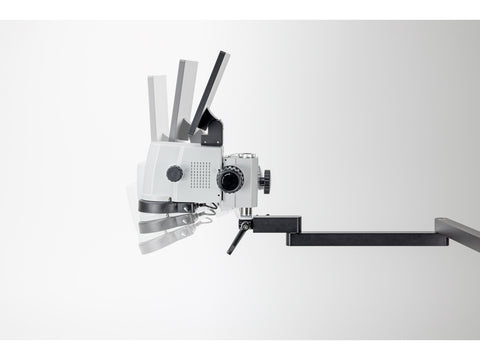

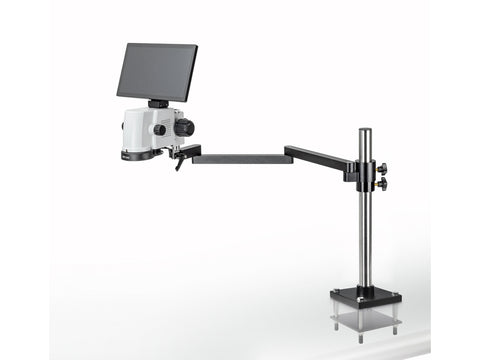

- The integrated universal stands with hinged arm enable flexible working with the most varied samples, even with greater working distances. In addition, the microscope can be pushed to the side if necessary, to create space
- Universal stands with hinged arm for screw onto a bench surface. Hole required
- The intuitive software and wireless USB mouse, both included with delivery, make it possible for you to easily process your results digitally and store them
- Using an HDMI interface it is possible to connect an additional monitor and in this way you can observe two devices operated in parallel in real time
- The image can be viewed on the PC using a USB connection. The software required for this also offers the option of carrying out measurements. It is available for download
- A special feature of this microscope range are the zoom wheels with integrated click stop. These offer precise selection of magnification levels and support the user when calibrating the documentation functions in the software
- The video microscope has one HDMI and two USB 2.0 interfaces as well as a micro SD card slot
- A protective dust cover, a USB stick (32 GB), a wireless USB mouse as well as multi-lingual user instructions are included in the delivery
- Menu languages: DE, EN, FR, IT, RU, JA, ZH
Product Parameters:
| Optical system | Axial |
| Tube type | Trinocular |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light |
| Illumination intensity incident light | 3 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Display type | LCD |
| Display screen size | 12" |
| Display resolution | 1920×1080 HD |
| Camera - Sensor type | CMOS |
| Camera - Sensor size | 1/2,8" |
| Camera - Resolution | 5 MP |
| Camera - Framerate | 60 fps |
| Interfaces | USB 2.0, HDMI, MicroSD card slot |
| Working distance | 100 mm |
| Sample height [Max] | 110 mm |
| Stand type | universal (jointed arm with plate) |
| Dimension (W×D×H) | 320×260×450 mm |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
