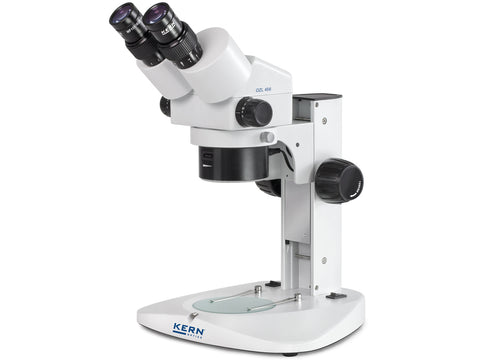

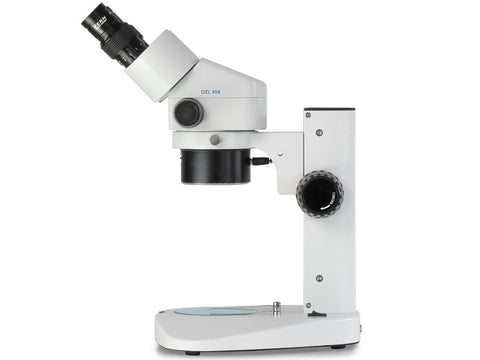

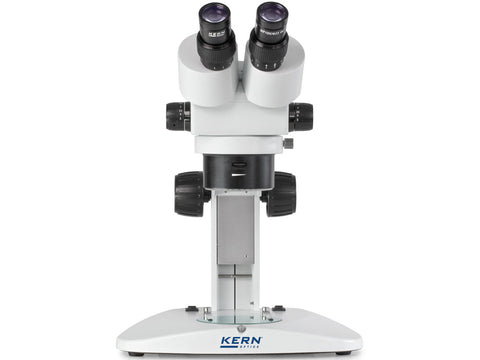

Kern Stereo Zoom Microscope OZL 456
Kern Stereo Zoom Microscope OZL 456
MSE Supplies offers a Stereo Zoom Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A stereo zoom microscope, also known as a dissecting microscope, provides a 3-dimensional or "stereo" image when looking through the microscope. The zoom feature on the stereo zoom microscope provides a range of viewing possibilities, and is the single feature that is most useful when selecting a stereoscope. The zoom knob on a stereo microscope provides magnification within a large range (for example, 0.7x - 4.5x) and ultimately allows the ability to view every single magnification (7x, 8x, 9x, etc.) when zooming in on the microscopy sample. Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The KERN OZL 456 stereo zoom microscope series will impress you with its excellent optical characteristics, easy operation and its integrated LED ring illumination unit.

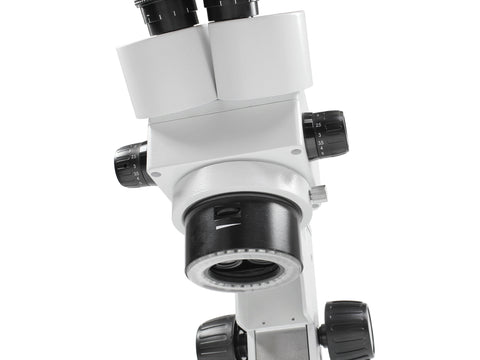

- The highlight of the KERN OZL 456 is the strong, continuoulsy dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included.
- With its built-in, top-quality optics and powerful, integrated LED illumination unit, this model is a special all-rounder for all areas of application.
- As standard this microscope offers you continuous total magnification of 7,5 x-50 x
- As standard, the KERN OZL-45R series is provided as a binocular version with 10× eyepieces with a field of view with a diameter of 23 mm.
- The arm curved stand gives you a large working area as well as a precise adjustment mechanism
- A large selection of eyepieces as well as auxiliary objectives are available as accessories.
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- Scope of application: in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control.
Applications
Samples with focus on three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components
Product Parameters
| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 23 mm |
| Magnification ratio | 6,7:1 |
| Zoom [Min] | 0,75 x |
| Zoom [Max] | 5 x |
| Objectives magnifications | 0,75 x - 5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 0,21 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 1 W |
| Working distance | 113 mm |
| Sample height [Max] | 45 mm |
| Stand type | mechanical |
| Focusing mechanism | coarse drive |
| Dimension (W×D×H) | 320×275×420 mm |
| Product family | OZL-45R |
