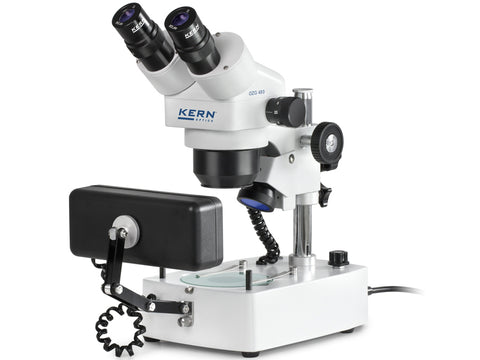

Kern Stereo Zoom Microscope OZG 493
Kern Stereo Zoom Microscope OZG 493
MSE Supplies offers a Stereo Zoom Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A stereo zoom microscope, also known as a dissecting microscope, provides a 3-dimensional or "stereo" image when looking through the microscope. The zoom feature on the stereo zoom microscope provides a range of viewing possibilities, and is the single feature that is most useful when selecting a stereoscope. The zoom knob on a stereo microscope provides magnification within a large range (for example, 0.7x - 4.5x) and ultimately allows the ability to view every single magnification (7x, 8x, 9x, etc.) when zooming in on the microscopy sample. Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The KERN OZG-4 series has been specially developed for jewellers and mineral observations in the gem industry. Precious stones and gems can be checked and handled with this stereo zoom microscope.
- As well as very good optical characteristics, these model forms an ideal package with it's dark field unit with object clamp which is included in the scope of delivery
- As standard this microscope offers you continuous total magnification of 7 x-36 x
- The KERN OZG 493 is fitted with a pole stand which has both integrated bright halogen light units with incident and transmitted illumination, as well as additional front lighting
- There is a range of eyepieces available as accessory options
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- Scope of application: Jewellers and gem industry.
Applications
Samples with focus on three-dimesnional impression (depth, thickness), zoom for variable magnification, special stand for processing workpieces e.g. gems, components, precious stones
Product Parameters
| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 5,1:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 3,6 x |
| Objectives magnifications | 0,7 x - 3,6 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination type transmitted light | Halogen |
| Illumination intensity transmitted light | 10 W |
| Illumination type incident light | Halogen |
| Illumination intensity incident light | 10 W |
| Working distance | 86 mm |
| Stand type | pillar |
| Focusing mechanism | coarse drive |
| Dimension (W×D×H) | 310×170×350 mm |
| Product family | OZG-4 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
