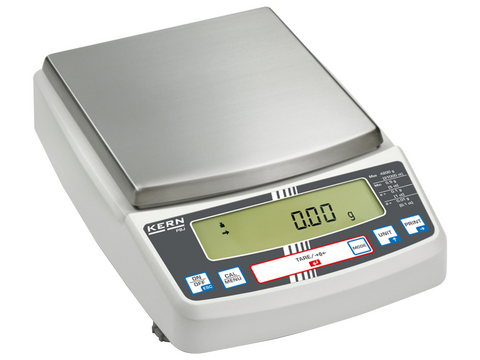

Kern PBJ Series Precision Balance with Automatic Internal Adjustment
Kern PBJ Series Precision Balance with Automatic Internal Adjustment
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers PBJ Series Precision Balance from KERN & SOHN GmbH. They are multifunctional laboratory balance with single-cell weighing system and EC type approval.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Main Features:
- PBJ: Automatic internal adjustment in the case of a change in temperature and time-controlled at defined intervals, guarantees high degree of accuracy and makes the balance independent of its location of use
- Metal housing: robust and sturdy
- Weighing with tolerance range (check weighing): Input of an upper/lower limit value. A visual signal assists with portioning, dispensing or grading
- Totalizing of weights
- Identification number: 4 digits, printed on calibration protocol freely programmable
- Automatic data output to the PC/printer each time the balance is steady

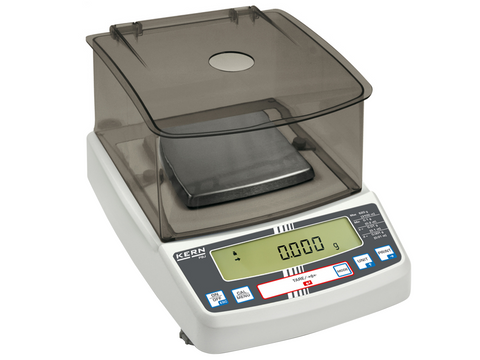

- Draught shield standard, on all models with readout [d] = 0,001 g, weighing space W×D×H 180 × 193 × 87 mm
- Protective working cover included with delivery
Single-cell advanced technology:
- Fully automatic manufactured weighing cell from one piece of material
- Stable temperature behavior
- Short stabilization time: 3 sec
- Shock proof construction
- High corner load performance
- In order to make it easier for you to make the right choice of KERN balance, we have included a quality code for each model, which is made up of two quality features and will give you technical data and pictograms in addition to the product features. This will help you to make the decision on the perfect balance for your application
Accessories:
- Protective working cover
- Paper rolls
- Matrix needle printer
- Color band
- Thermal printer
- Thermal receipt rolls
- Statistics printer
- Software Balance Connection
- RS-232/Ethernet adapter
- RS-232/Bluetooth adapter
- Multi-Plug Mains adapter
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
Parameter |
PBJ6203M |
PBJ62002M |
PBJ82001M |
|
Readability |
1 mg |
10 mg |
100 mg |
|
Weighing range (max) |
620 g |
6200 g |
8200 g |
|
Minimum load |
0.1 g |
1 g |
5 g |
|
Verification class |
I |
II |
|
|
Verification value |
0.01 g |
0.1 g |
1g |
|
Repeatability |
1 mg |
10 mg |
100 mg |
|
Linearity |
2 mg |
20 mg |
200 mg |
|
Stabilization time |
2.5 sec. |
1.2 sec. |
|
|
Adjustment weight |
internal calibration (auto) |
||
|
Warm-up time |
4 hrs |
2 hrs |
|
|
Weighing units |
ct, g, kg |
||
|
Weighing plate dimension (stainless steel) |
108 mm x 105 mm x 5 mm |
170 mm x 180 mm x 5 mm |
180 mm x 195 mm x 8 mm |
|
Dimensions of the housing (W x D x H) |
210 mm x 330 mm x 70 mm |
205 mm x 325 mm x 85 mm |
210 mm x 330 mm x 78 mm |
|
Weighing space (W x D x H) |
180 mm x 193 mm x 87 mm |
||
|
Net weight (kg) |
4.2 |
5.0 |
5.0 |
|
Operating temperature |
10°C ~ 30°C |
||
|
Operating humidity |
80 % relative (not condensing) |
||
|
Input voltage |
220 V - 240 V AC 50 Hz |
||
* For applications that require verification, please order verification at the same time
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
