Kern Microscope Camera ODC 251
SKU: ODC 251
Kern Microscope Camera ODC 251
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a (Input product type: compound microscope, polarimeter, Refractometer, Microscope Camera, etc.) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
USB microscope cameras are most often used for routine quality control work, educational settings where image capture is required, and hobby use for documentation.
HD tablet with integrated 4K camera for convenient monitoring and professional digital documentation of the sample
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features:

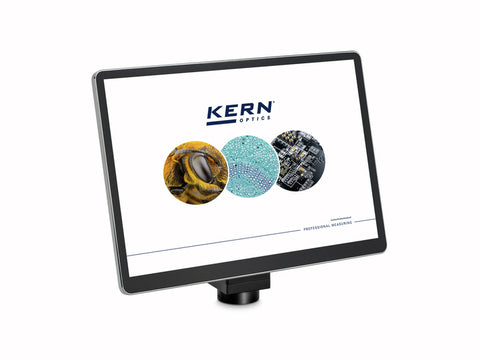

- The KERN ODC 251 microscope tablet camera consists of an Android tablet with a 10.5" HD display in combination with an 8 MP camera. It is intuitive to use and is suitable for all trinocular microscopes with a C-mount adapter
- The KERN tablet cameras have been specially developed for simple, direct monitoring of samples on the screen, whether used in the laboratory, in quality testing or in training and studying
- The integrated high-performance camera has an 8 MP image sensor with a sensor size of 1/1.8" and is able to record videos with a resolution of 4K. In this way, as well a live transfer of the image to the Android table, high-resolution images and videos can also be created for the documentation. Measuring functions, such as, for example, functions for measuring distance and surfaces are also available
- Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures

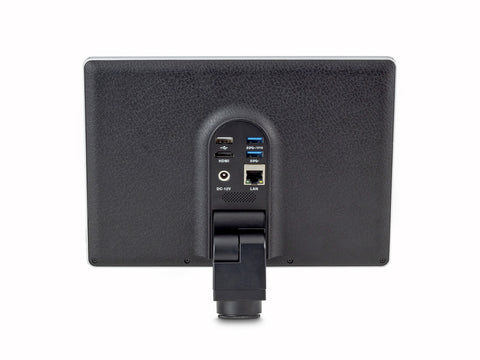

- A range of additional functions are provided through the integrated interfaces, such as, for example
- Data storage on a USB stick
- Connection to a USB mouse
- Transfer of the live image to an external screen using HDMI
- Transfer of stored data to external receivers using WiFi or LAN - The delivery includes the tablet camera with pre-installed measuring software, the power supply, a calibration slide as well as user instructions
Product Parameters:
| Camera - Resolution | 8 MP 4 K |
| Camera - Sensor type | CMOS |
| Camera - Sensor size | 1/1,8" |
| Camera - Colour depth | Colour |
| Camera - Pixel size | 2×2 µm |
| Camera - FPS at Resolution range 1 | 30 FPS, 3840*2160 |
| Camera - Exposure time | [Min] 0 ms / [Max] 1000 ms |
| Camera - Exposure method | Rolling Shutter |
| Interfaces | Ethernet, Bluetooth, WiFi standard, USB 2.0, USB 3.0, HDMI |
| Camera- Mounting types | C-mount |
| Supported operating systems | Android |
| Camera - Applicable software | integrated |
| Dimension (W×D×H) | 237×169×57 mm |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
