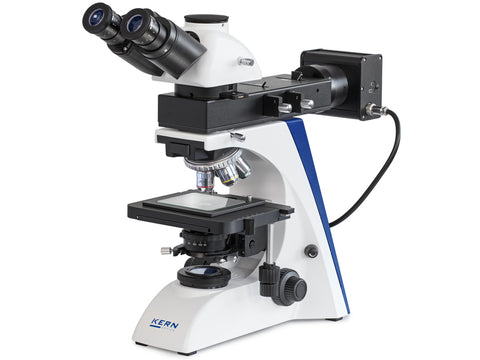

Kern Metallurgical Microscope OKO 178
Kern Metallurgical Microscope OKO 178
MSE Supplies offers a Metallurgical Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Metallurgical Microscopes are mainly used in metallography, forensic, processing plastics, inspection of metals, semiconductor materials, laser systems, solar cells using both thin films and wafer technology and many other fields of material science.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- This device is a professional, versatile, metallurgical microscope, which is used in testing metals and analysing surfaces
- The KERN OKO is a combi variant of LED incident illumination and LED transmitted illumination. A height-adjustable 1.25 Abbe condenser which can be centred as well as a field diaphragm for complete professional Köhler illumination are part of the standard version
- An open, mechanical angle table is integrated as standard
- A simple polarising unit (analyser and polariser) is included with delivery.
- A large selection of accessories, such as, for example, eyepieces and further objectives are available for longer working distances
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- A C-mount adapter is required to connect a camera
- Scope of application: Metallurgy, material testing, quality assurance
Applications
Opaque and thick samples, workpieces (surfaces, fold lines, coatings)
Product Parameters
| Optical system | Infinity |

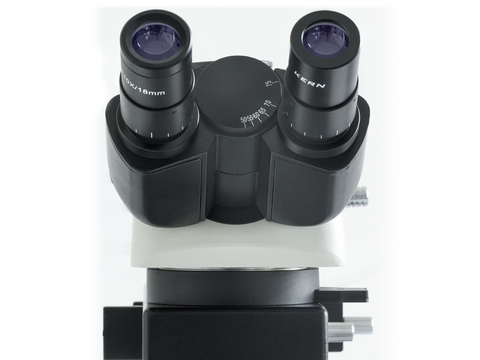

| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 22 mm |

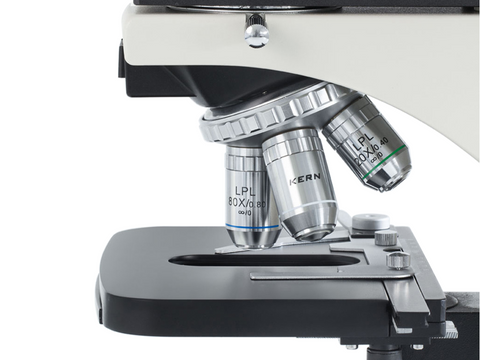

| Standard objectives | 5×, 10×, 20×, 50× |
| Lens quality | Infinity semi apochromatic |
| Nosepiece screw-in locations | 5 |
| Illuminance | Reflected light, Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 5 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 5 W |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,002 mm |
| Dimension (W×D×H) | 550×200×460 mm |
| Product family | OKO-1 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
