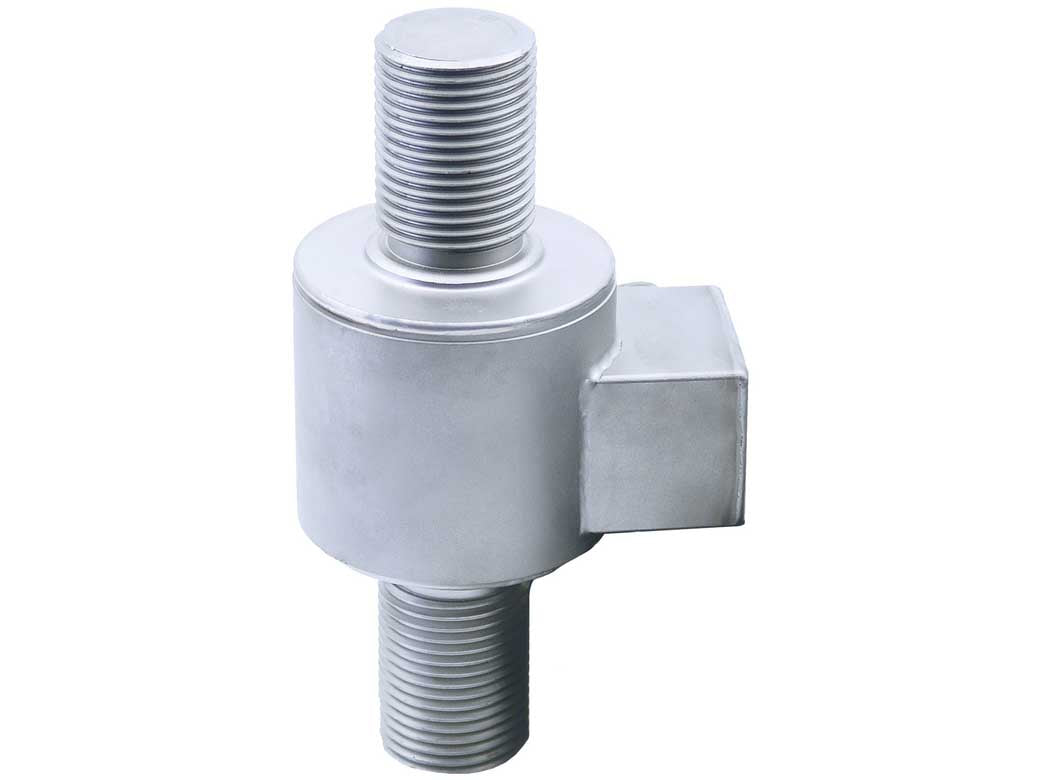

Kern Load/Force Measuring Cell CD 100-2P2
SKU: CD 100-2P2
Kern Load/Force Measuring Cell CD 100-2P2
MSE Supplies offers a Load/Force Measuring Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Loadcell made of stainless steel.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- RoHS compliant
- Area of application: for tensile and compressive force measurement
- Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test stands.
Product Parameters
| Weighing capacity [Max] | 100 t |
| Measuring range force [Max] (N) | 1 MN |
| Design | Tension-/compression rod |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,03% |
| Load cell OIML class | C2 |
| Load cell - Resolution (verifiable) | 2000 e |
| Load cell - Y-value | 5000 |
| Load cell - characteristic value - nominal | 1,5 mV/V |
| IP protection - complete device | IP68 |
| Material | stainless steel |
| Load cell connection | 4-wire |
| Cable length | 20 m |
| Mounting - force application | External thread M76 × 4 |
| Mounting - force dissipation | External thread M56 × 4, External thread M76 × 4 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
