Kern IoT-Line Display Device KXC-TM

SKU: KXC-TM

  • $ 44095
  • Save $ 4800

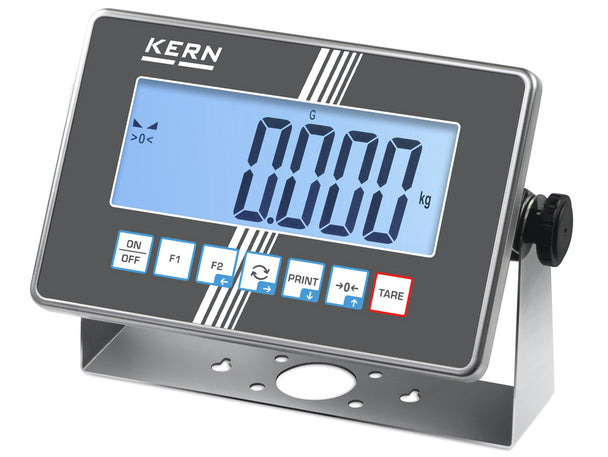

Kern IoT-Line Display Device KXC-TM

MSE Supplies offers a Display Device from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

Stainless steel display device with IP68 dust and spray protection and up to four interfaces, with optional verification.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

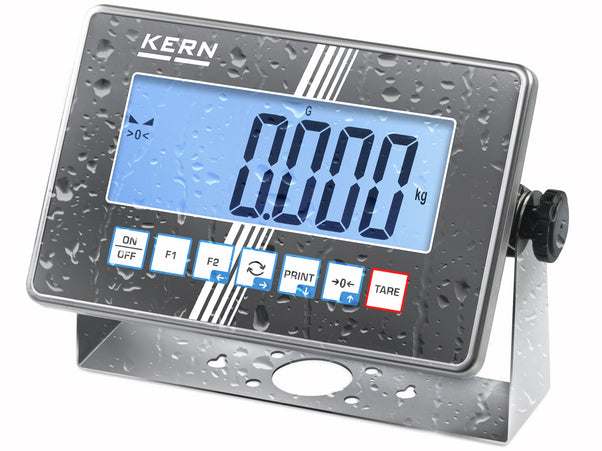

  • With dust and spray protection (IP68), which makes it ideal for use in industry and outdoors
  • Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
  • Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
  • Each interface can be set up separately, e.g.:
    - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
    - Interface 2 (RS-232): Print stable weight
    - Interface 3 (analogue module): Controlling a device when the target weight is reached
    - Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process
  • Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
  • Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further.

Product Parameters

Terminal resolution (not verifiable) 999.999
Terminal resolution (verifiable) 6.000
Number of weighing ranges 2
Units kg, g, lb, ffa, PCS, %
Display type LCD with backlight
Display digit height 48 mm
Reference quantity 5, 10, 20, 50, n (any number of pieces)
Conformity assessment possible ex works ü
Input voltage power supply / power [Max] 110 V - 240 V AC
Rechargeable battery operating time - backlight off 48 h
Rechargeable battery charging time 8 h
Net weight 1,55 kg
Ambient temperature -10 °C – 40 °C



About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
