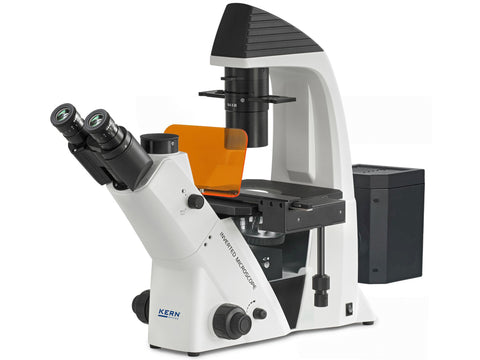

Kern Inverted Fluorescence Microscope OCM 168
Kern Inverted Fluorescence Microscope OCM 168
MSE Supplies offers a Fluorescence Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A fluorescent microscope is often used to image specific features of small specimens such as microbes. It is also used to visually enhance 3-D features at small scales. This can be accomplished by attaching fluorescent tags to anti-bodies that in turn attach to targeted features, or by staining in a less specific manner. When the reflected light and background fluorescence is filtered in this type of microscopy, the targeted parts of a given sample can be imaged. This gives an investigator the ability to visualize desired organelles or unique surface features of a sample of interest.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example.
- A 5W LED illumination unit ensures the optimum illumination in the bright field of your samples. An additional Osram 5W-LED Epi fluorescence illumination unit is available to you as a fluorescence microscope for perfect illumination and stimulation of your fluorescence samples

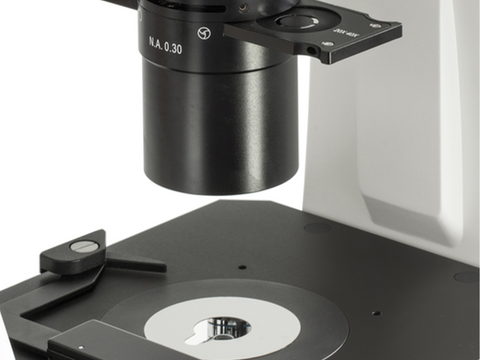

- A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications.

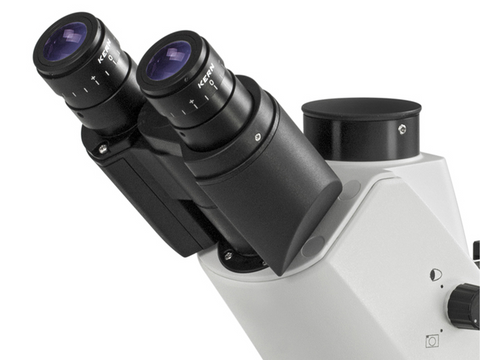

- As standard, the OCM range is fitted with a trinocular eyepiece tube.

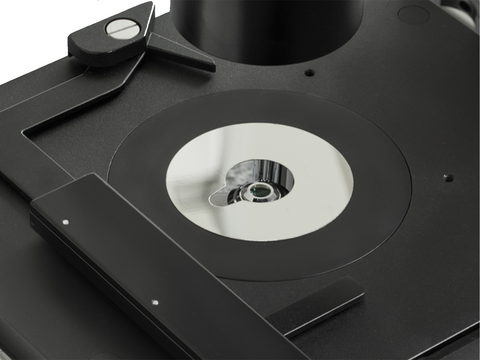

- The mechanical stage including specimen holder (∅ 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories
- Further options such as, for example, a selection of eyepieces, objectives, specimen holders and other phase contrast units can be integrated as accessories
- A dust cover as well as user instructions are included with the delivery
- A C-mount adapter is required to connect a camera
- Scope of application: Research and breeding of cell cultures and tissue cultures
Applications
Particularly for viewing samples in culture vessels (flasks, petri dishes, microtitre plates), translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, tissue, microorganisms if necessary, Immunofluorescence, FISH, DAPI staining etc.)
Product Parameters
| Optical system |
Infinity |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 22 mm |
| Standard objectives | 10×, 20×, 40×, PH 20× |
| Lens quality | Infinity Plan |

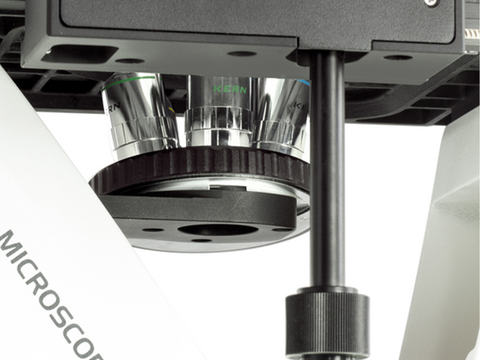

| Nosepiece screw-in locations | 5 |
| Illuminance | Reflected light, Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 5 W |
| Illumination type incident light | LED |
| Illumination intensity incident light | 5 W |
| Fluorescent unit | Ultaviolet, Violet, Blue, Green (LED) |

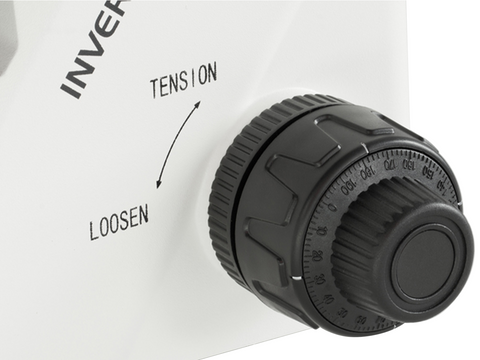

| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,002 mm |
| Dimension (W×D×H) | 782×304×530 mm |
| Product family | OCM-1 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
