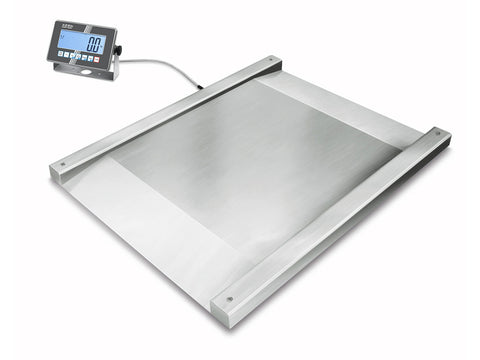

Kern Drive-Through Scale Stainless Steel NXC 1.5T-4M
SKU: NXC 1.5T-4M
Kern Drive-Through Scale Stainless Steel NXC 1.5T-4M
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a (Input product type: compound microscope, polarimeter, Refractometer, Microscope Camera, etc.) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Stainless steel drive-through scale (IP67) with stainless steel display device (IP68), verification optional
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features:
- Robust stainless steel drive-through scale for rapid weighing of e.g. laundry carts, container trolleys, roller containers, etc.
- Ideal for the ever-increasing hygienic requirements in the food, pharmaceutical and chemical industries
- Your support in a HACCP-compliant quality system
- Weighing bridge: stainless steel, extremely resistant to bending due to material thickness, 4 welded stainless steel load cells, IP68 dust and spray protection
- Display device: stainless steel, protection against dust and water splashesIP68, for details see KERN KXC-TM
- IoT line: networkable balances with user-friendly concept of operation
- Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
- Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
- Wall mount for display device, standard
Product Parameters:
| Weighing capacity [Max] | 1500 kg |
| Readability [d] | 0,5 kg |
| Verification scale interval [e] | 0,5 kg |
| Units | kg, g, ffa, PCS, % |
| Minimum weight [Min] | 10 kg |
| Dimensions weighing platform (W×D×H) | 1600×1220×95 mm |
| Dimensions weighing surface (W×D) | 1000×1000 mm |
| Reproducibility | 0,5 kg |
| Linearity | ± 0,5 kg |
| Ambient temperature | -10 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 5 kg |
| Conformity assessment possible ex works | Yes |
| Display type | LCD |
| Display digit height | 48 mm |
| Material weighing plate | stainless steel |
| Material platform | Stainless steel |
| Display device cable length | 5 m |
| Tolerance weighing | Yes |
| Net weight approx. | 130 kg |
| IP protection - complete device | - |
| IP protection - display | IP68 |
| IP protection - platform | IP67 |
| IP protection - load cell | IP68 |
| Construction type of the scale | Single-range balance |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
