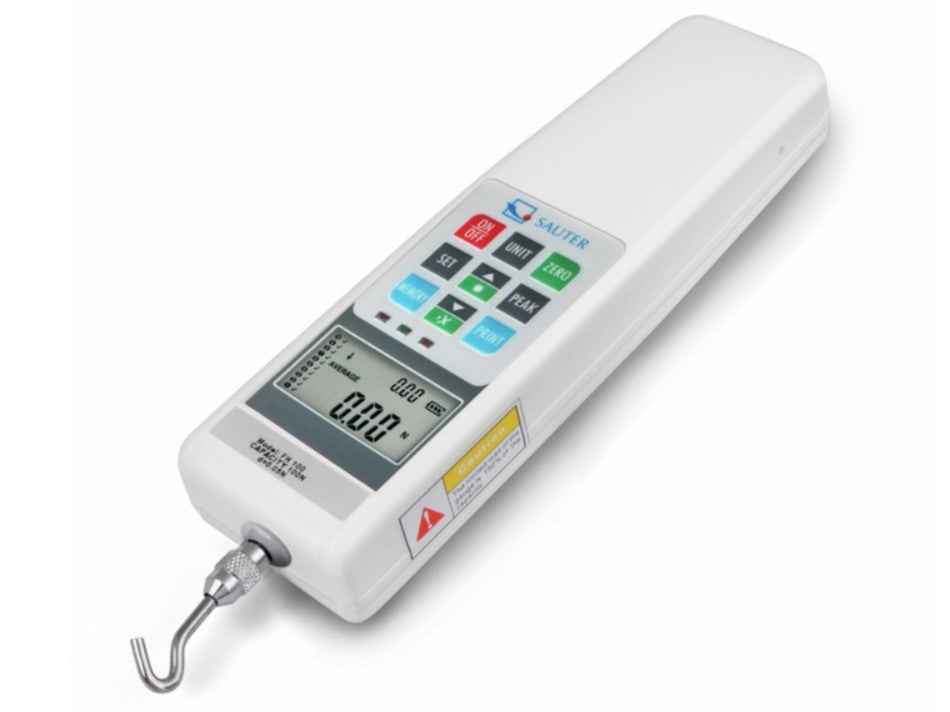

Kern Digital force gauge (internal) FH 2
SKU: FH 2
Kern Digital force gauge (internal) FH 2
Universal digital force gauge for tensile and compressive force measurements with integrated load cell
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Turnable display with backlight
- Can be mounted on all SAUTER test stands up to 5 kN
- NEW: USB interface for data transfer and power supply as standard
- Data interface RS-232 as standard
- Selectable measuring units: N, kgf, lbf
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
- Auto-Power-Off
- Internal memory for up to 10 measurement values
- Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n
- Standard attachments as shown, extension rod: 90 mm, included with the delivery
- Delivered in a robust carrying case
Product Parameters
| Measuring range force [Max] (N) | 2 N |
| Readability force [d] (N) | 0,001 N |
| Tolerance (% of [Max]) | 0,5% |
| Measuring head measuring frequency | 2 kHz |
| Supplied power supply | Accu & Power supply |
| Memory function | Yes |
| Statistic function | Yes |
| Limit-setting function | Yes |
| Peak function | Yes |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 280×70×40 mm |
| Net weight approx. | 0,55 kg |
| Interfaces | RS-232 standard, USB-Device |
| GTIN/EAN number | 4045761368514 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
