Kern Compound Microscope OBT 101
Kern Compound Microscope OBT 101
MSE Supplies offers a Compound Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Compound microscopes are used to view small samples that cannot be identified with the naked eye. These samples are typically placed on a slide under the microscope. When using a stereo microscope, there is more room under the microscope for larger samples such as rocks or flowers and slides are not required.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The KERN OBT range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design.
- The infinitely dimmable 1W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through optional battery operation
- The simple condenser lens with adjustable aperture diaphragm ensures the very best concentration of light and illumination of the sample
- To focus the object accurately, the model has a coarse and fine focusing knob on both sides
- A large selection of different eyepieces and objectives is also available
- A dust cover as well as user instructions are included with the delivery
- Scope of application: Primary school, secondary school, training, hobby use
Applications
Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites)
Product Parameters
| Optical system | Finite |
| Tube type | Monocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 18 mm |

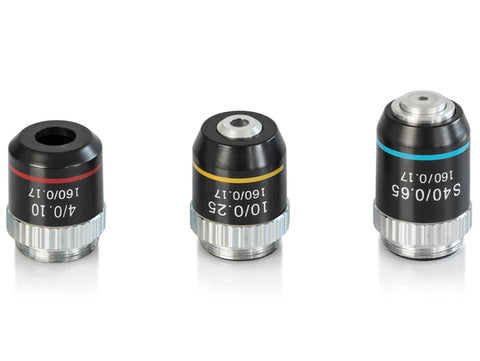

| Standard objectives | 4×, 10×, 40× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 3 |
| Illuminance | Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 1 W |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,0025 mm |
| Dimension (W×D×H) | 195×147×325 mm |
| Product family | OBT-1 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
