Kern BalanceConnection SCD-4.0-PRO-DL
SKU: SCD-4.0-PRO-DL
Kern BalanceConnection SCD-4.0-PRO-DL
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a (Input product type: compound microscope, polarimeter, Refractometer, Microscope Camera, etc.) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Flexible recording or transfer of measurements, particularly to Microsoft® Excel or Access
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features:
- For operating systems Windows 10 (20H2) and newer, 11
- .NET Framework 4.8.1 required
- Full administration rights are required for the installation
- Supports balances and measuring devices with USB, RS-232, RS 485, Bluetooth, LAN or WiFi network (TCP/UDP/IP)
- Highly flexible formatting and design of the output (any order and positioning, formatting and rounding), particularly recording of date and time for every value transferred, if required
- Any number of devices/interfaces can be connected, as well as simultaneous and synchronised recording of several balances
- Key-activated or time-controlled interrogation of measurements or trigger of device functions, also for continuous recording
- The interface protocols for KERN balances are already predefined (standard configuration). Support of other balances is possible through flexible configuration
- Compatible interface cable included when you order a KERN balance at the same time
- Many different transfer and recording options:
- MicrosoftR Excel/Access/Word in the foreground or background
- Other Windows applications (through key simulation), e.g. shipping software or ERP system (SAP, Sage, etc.)
- File recording (e.g. as text or CSV file)
- Print out on text or label printer - Additional features of the BalanceConnection PRO version::
- ODBC/SQL databases such as SQL Server or MySQL
- Transfer to HTTP Webservices/Web forms

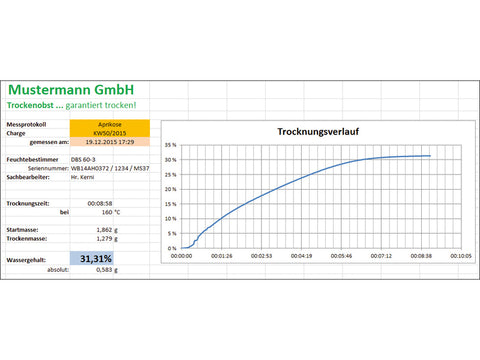

- Histogram
- Enables the connection of medical balances to practice EDP systems using the device data transfer protocol (GDT) and also the HL7 protocol
- Implementation of programs/scrips using freely-definable command lines
- Command sequences
- Defining the conditions for specific events and the reaction to these events
- Filter for stability recognition (configurable value storage)
- Central configuration repository, e.g. on the network

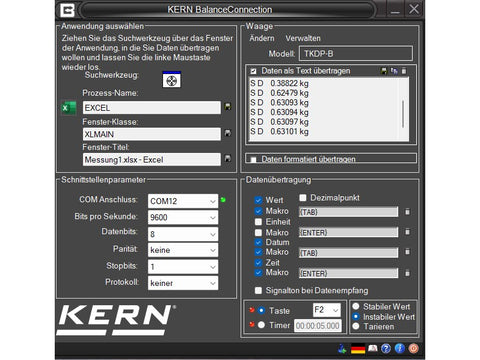

- On-screen displays with configurable user interface for flexible balance operation - Benefits
- Ideal software where weighing data which has been collected needs to be transferred to a Windows PC
- Particularly suitable for professional integration of weighing systems into existing networks where there is a high demand for automated data transfer and further processing, for integration of databases
- Automatic recording, e.g. for long-term tests
- GLP-compliant lab software
- For each license, you can use as many balances as you need at one PC/workstation
- Can be used across different branches and applications - Scope of supplies: Download link for 1 license
Product Parameters:
| Languages of the user interface | German, English, French |
| Product group | BalanceConnection |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
