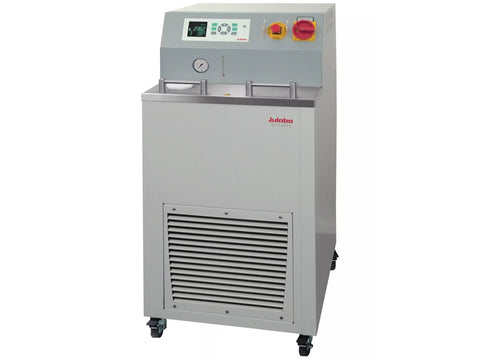

Julabo SC2500a SemiChill Recirculating Cooler/Chillers

  • $ 21,99395
  • Save $ 44900


Julabo SC2500a SemiChill Recirculating Cooler/Chillers

Recirculating Cooler for industrial applications (basic model, additional options for specific requirements available). The SemiChill series offers powerful recirculating coolers. These units have been especially designed for applications in the semiconductor industry. Five models are available, with cooling capacities from 2.5 to 10 kW (air- or water-cooled). Working temperature ranges from +5 to +35 °C which can optionally be extended from -20 to +130 °C. Also available is a selection of powerful pumps. The units can be modified to provide heater capacities up to 5 kW. Selection between different electronic modules to conform to simple or high demands such as, for example flow rate and conductivity measurement, external temperature control or integration of the coolers via analogue signals, RS232, device net or ethernet. A large range of accessories and options including DI filters, micro filters, USB adapters, etc. is available.



Specifications

Part Number

9500025.13.P3H0

Voltage Version

230V/60Hz

Refrigerant

R452A

Heating & Cooling

Both

Working Temp Range (°C)

-20 - 80

PCF Pressure (psi)

50.8

PCF Rate (l/min)

33







MSE Supplies is an authorized distributor of Julabo products.
