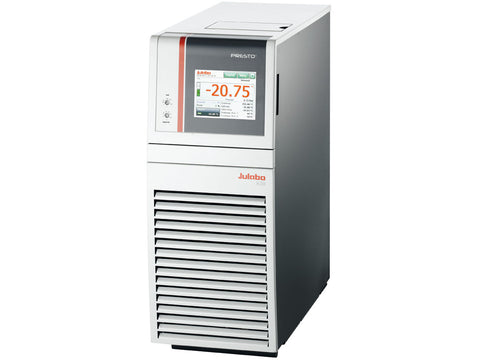

Julabo PRESTO A30 Highly Dynamic Temperature Control Systems
SKU: 9420300.03
Julabo PRESTO A30 Highly Dynamic Temperature Control Systems
JULABO PRESTO® Highly Dynamic Temperature Control Systems for highly precise temperature control of external applications. Systems offer rapid heating and cooling rates for fast compensation of external events. The hydraulically sealed heat exchanger design afford a wide working temperature range without changing fluids. All units feature a 5.7″ industrial color TFT touch screen interface for unit operation, external integration and programming.
These instruments cover a working temperature range of -30 to +250°C to -92 to 250 °C. Up to three user levels with password management enable safe, repeatable operation. Systems incorporate USB (host and device), Ethernet, SD-card slot, RS232 port, stand-by input and Pt100 external temperature sensor port.
The graphite bearing centrifugal pressure pump is lubricated by the bath fluid. All models (except for A30) can operate under pressure control to safeguard pressure sensitive applications (such as jacketed glass reactors).
Air and water-cooled versions available. Use only with approved JULABO fluids. Systems can operate with silicone fluids (Thermal P60 and Thermal P90) and HFEs (Fluorinert® and Galden®). Single stage PRESTO systems can operate with 1:1 ethylene glycol/water mixtures from -30 to +90 °C. Additional accessories available.
Specifications
Part Number |
9420300.14 |
9420300.14.CSA/UL |
Voltage Version |
208V/60Hz |
208V/60Hz |
NRTL |
No |
Yes |
Refrigerant |
R449A |
R449A |
Heating & Cooling |
Both |
Both |
Working Temp Range (°C) |
-30 - 250 |
-30 - 250 |
PCF Pressure (psi) |
7.25 |
7.25 |
PCF Rate (l/min) |
25 |
25 |
