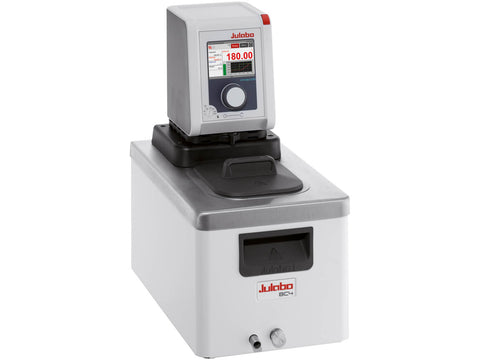

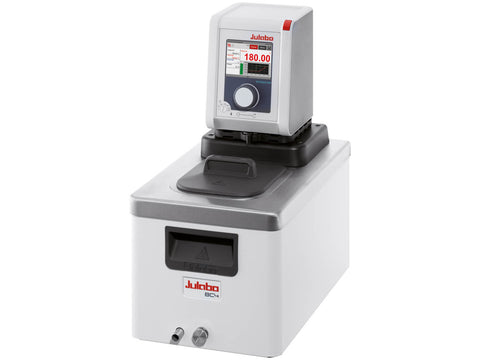

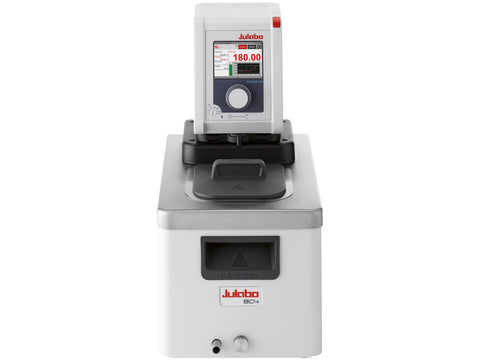

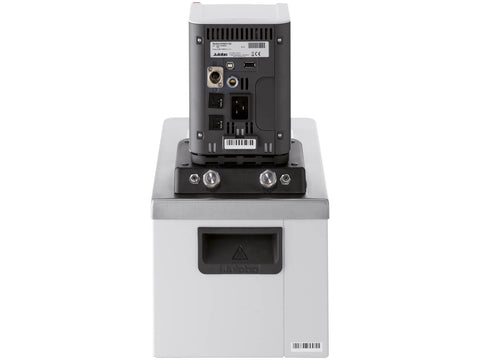

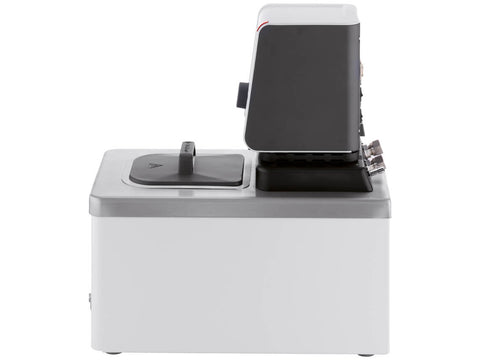

Julabo DYNEO DD-BC4 Heating Circulator

SKU: 9021504.04

  • $ 4,57095
  • Save $ 9400



Julabo DYNEO DD-BC4 Heating Circulator

DYNEO™ heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank for temperatures to 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated drain valve. Color TFT display with central rotary knob controller, multi-lingual interface, integrated programmer, Pt100 port for external temperature control. USB connection for external PC control and data-logging; Digital option includes RS232 port; analog option includes analog interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).



Specifications

Part Number

9021504.22

9021504.22.A

9021504.22.A.CSA/UL

9021504.22.CSA/UL

9021504.22.D

9021504.22.D.CSA/UL

9021504.33

9021504.33.A

9021504.33.A.CSA/UL

9021504.33.CSA/UL

9021504.33.D

9021504.33.D.CSA/UL

9021504.33.R

Voltage Version

100V-115V/50-60Hz

100V-115V/50-60Hz

100V-115V/50-60Hz

100V-115V/50-60Hz

100V-115V/50-60Hz

100V-115V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

NRTL

No

No

Yes

Yes

No

Yes

No

No

Yes

Yes

No

Yes

No

Interface

Base

Analog

Analog

Base

Digital

Digital

Base

Analog

Analog

Base

Digital

Digital

Base

Heating & Cooling

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Heating

Working Temp Range (°C)

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

20 - 200

PCF Pressure (psi)

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

PCF Rate (l/min)

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27





MSE Supplies is an authorized distributor of Julabo products.
