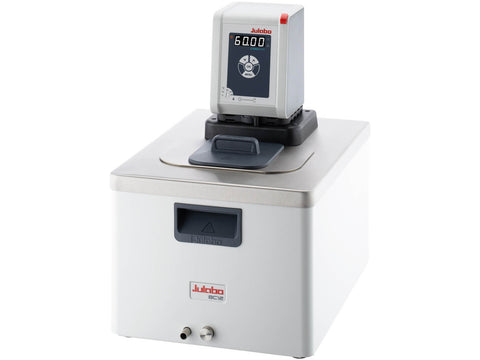

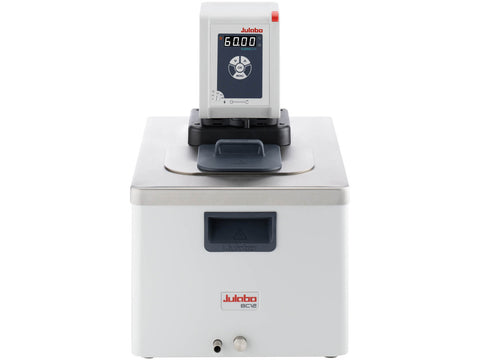

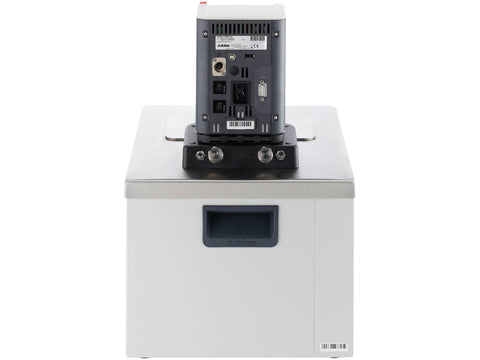

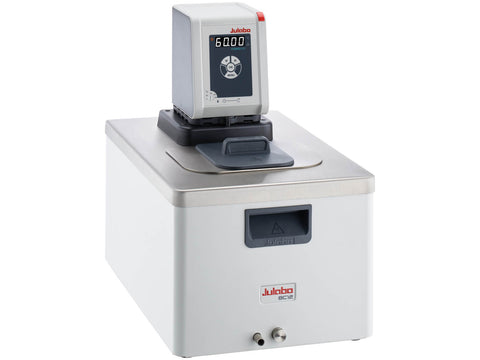

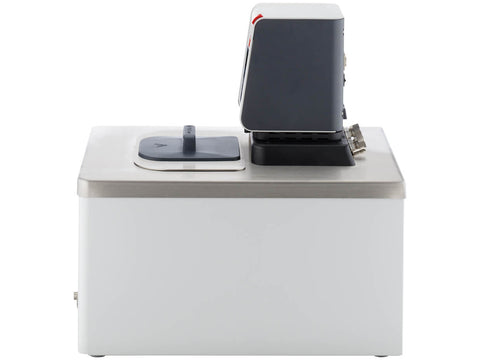

Julabo CORIO CP-BC12 Heating Circulator
Julabo CORIO CP-BC12 Heating Circulator
CORIO™ CP heating circulators are suitable for temperature applications to 200 °C with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CP circulator incorporates easy change-over for control of fluid circulation internally or externally.
Pump inlet/outlet fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated cooling coil and drain ports. Bright LED display with easy to use interface including USB and RS232 connections for external PC control and data-logging. PID temperature control provides ±0.02 °C stability. Adjustable centrifugal pump capacity of 8-27 L/min with pressure from 1.5-10.2 psi
Class III (FL) according to DIN 12876-1
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Specifications
|
Part Number |
9013512.22 |
9013512.33 |
|
Voltage Version |
100V-115V/50-60Hz |
200-230V/50-60Hz |
|
Heating & Cooling |
Heating |
Heating |
|
Working Temp Range (°C) |
20 - 200 |
20 - 200 |
|
PCF Pressure (psi) |
1.5 - 10.2 |
1.5 - 10.2 |
|
PCF Rate (l/min) |
8 - 27 |
8 - 27 |
