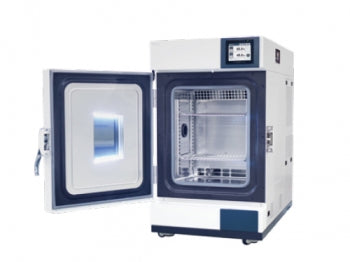

Jeio Tech Lab Companion Temperature & Humidity Chamber Tabletop type (TH3-KE)
SKU: AAH824132K
Jeio Tech Lab Companion Temperature & Humidity Chamber Tabletop type (TH3-KE)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Autoclaves (Vertical Type) from Jeio Tech. More convenience small type Temp. & Humid chamber with new advanced controller
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- 3 series (KE, ME, PE) according to temperature / temperature and humidity control range.
TH3-KE; -35 - 150°C
TH3-ME; -20 - 150°C
TH3-PE; 0 - 120°C - Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
- Dedicated stand for convenient use and moving.(option)
- Recorder for maintaining test records. (option)
Accessories:
- Wire Shelf
- Perforated Shelf
- Recorder (Paper)
- Recorder (Digital)
- Cable Port
- Signal Lamp
- Water Purifier
- Inner Glass Door
- Stand (1 Stage)
- Stand (2 Stage)
- LC GreenBox (only TH3 model)
Technical Specifications:
| Model | TH3-KE-025 | TH3-KE-065 | TH3-KE-100 |
|---|---|---|---|
| SKU# | AAH824132K | AAH824232K | AAH824332K |
| Electrical data & Ordering information | |||
| Electrical requirements (AC230V, 1P, 50Hz, A) | 12.0 | 13.9 | 15.8 |
| Interior dimensions | |||
| Chamber volume (L / cu ft) | 25 / 0.9 | 65 / 2.3 | 100 / 3.5 |
| Width (mm / inch) | 350 / 13.8 | 400 / 15.7 | 500 / 19.7 |
| Depth (mm / inch) | 220 / 8.7 | 330 / 13.0 | 380 / 15.0 |
| Height (mm / inch) | 350 / 13.8 | 495 / 19.5 | 530 / 20.9 |
| Quantity of shelves (standard/max.) | 2/7 | 2/10 | 2/10 |
| Distance of between shelves (mm / inch) | 20 / 0.8 | 20 / 0.8 | 20 / 0.8 |
| Max. load per shelf (kg /lbs) | 25 / 55.1 | 25 / 55.1 | 25 / 55.1 |
| Permitted total load (kg / lbs) | 65 / 143.3 | 65 / 143.3 | 65 / 143.3 |
| Cable port (Ø, mm / inch) | 50 / 2.0 | 50 / 2.0 | 50 / 2.0 |
| Water tank capacity (L / cu ft) | 8 / 0.3 | 12 / 0.4 | 12 / 0.4 |
| Weight (kg / lbs) | 110 / 242.5 | 140 / 308.6 | 150 / 330.7 |
| Temperature data | |||
| Range without humidity (℃ / ℉) | -35 to 100 / -31 to 212 (50Hz) | ||
| -40 to 100 / -40 to 212 (60Hz) | |||
| Fluctuation (±℃ / ℉) 1) | 0.3 / 0.54 | 0.3 / 0.54 | 0.3 / 0.54 |
| Variation (±℃ / ℉) 1) | 0.5 / 0.9 | 0.5 / 0.9 | 0.5 / 0.9 |
| Heating time (0℃ to 90℃) (min) | 60 | 60 | 60 |
| Cooling time (90℃ to 0℃) (min) | 70 | 70 | 70 |
| Humidity data (※ Ref.: Temp./ Humid. control range graph) | |||
| Range (%RH) | 20 to 95 | 20 to 95 | 20 to 95 |
| Fluctuation (±%RH) 1) | 1 | 1 | 1 |
| Variation (±%RH) 1) | 3 | 3 | 3 |
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
