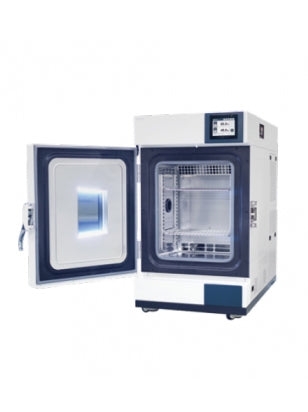

Jeio Tech Lab Companion Temperature & Humidity Chamber Tabletop Type (Temp: -20~150°C)
SKU: AAH821132K
Lab Companion Temperature & Humidity Chamber Tabletop Type (Temp: -20~150°C)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Temperature & Humidity Chamber Tabletop Type (TH3-ME) from Jeio Tech. Its compact design is excellent for space saving. There are three series (KE, ME, PE) to choose from with different temperature and humidity control range.
Temperature Range for Different Series:
TH3-KE: -35~150°C
TH3-ME: -20~150°C
TH3-PE: 0~120°C
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
- Compact design for excellent space saving.
- Water level check function enables water replenishment at the right time.
- Operation and status monitoring from the front of the chamber.
- RS-232 port (default) and RS-485 port (option) supported.
- Ensures that the surface temperature is kept below 60°C.
- Auto stop when operating current of compressor is overloaded.
Accessories:
- Wire Shelf
- Perforated Shelf
- Recorder (Paper)
- Recorder (Digital)
- Cable Port
- Signal Lamp
- Water Purifier
- Inner Glass Door
- Stand (1 Stage)
- Stand (2 Stage)
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
AAH821132K |
AAH821232K |
AAH821332K |
|
|
Electrical requirements (AC230V, 1ph, 50Hz~60Hz) (A) |
7.7 |
9.6 |
13.8 |
|
|
Interior dimension |
Chamber volume (L) |
25 |
65 |
100 |
|
Width (inch) |
13.8 |
15.7 |
19.7 |
|
|
Depth (inch) |
8.7 |
13.0 |
15.0 |
|
|
Height (inch) |
13.8 |
19.5 |
20.9 |
|
|
Quantity of shelves (standard/max.) |
2/7 |
2/10 |
||
|
Distance of between shelves (inch) |
0.8 |
|||
|
Max. load per shelf (lbs) |
55.1 |
|||
|
Permitted total load (lbs) |
143.3 |
|||
|
Cable port (Ø, inch) |
2.0 |
|||
|
Water tank capacity (L) |
8 |
12 |
||
|
Weight (lbs) |
176.4 |
242.5 |
286.6 |
|
|
Temperature data |
Range without humidity (℃ / ℉) |
-20 to 150 / -4 to 302 |
||
|
Fluctuation (±℃ / ℉) |
0.3 / 0.54 |
|||
|
Variation (±℃ / ℉) |
0.5 / 0.9 |
|||
|
Heating time (0℃ to 90℃) (min) |
50 |
|||
|
Cooling time (90℃ to 0℃) (min) |
55 |
|||
|
Humidity data |
Range (%RH) |
20 to 95 |
||
|
Fluctuation (±%RH) |
1 |
|||
|
Variation (±%RH) |
3 |
|||
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
