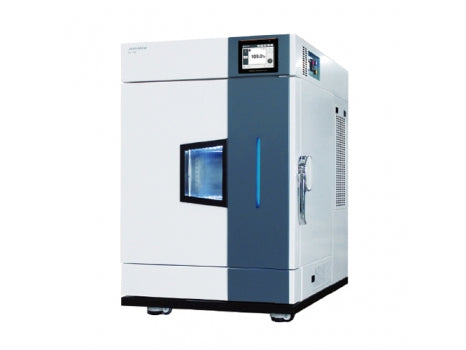

Jeio Tech Lab Companion Heating & Cooling Chamber Tabletop Type (TC3-KE)
SKU: AAH861132K
Jeio Tech Lab Companion Heating & Cooling Chamber Tabletop Type (TC3-KE)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Autoclaves (Vertical Type) from Jeio Tech. Compact temperature test chamber by continuing technological innovation
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- 2 series (KE, ME) according to temperature control range.
TC3-KE ; -35 ~ 150℃
TC3-ME ; -20 ~ 150℃ - Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
- Dedicated stand for convenient use and moving.(option)
- Recorder for maintaining test records. (option)
Technical Specifications:
| Model | TC3-KE-025 | TC3-KE-065 | TC3-KE-100 |
|---|---|---|---|
| SKU# | AAH861132K | AAH861232K | AAH861332K |
| Electrical data & Ordering information | |||
| Electrical requirements (230V, 1P, 50Hz, A | 8.5 | 9.5 | 10.6 |
| Temperature data | |||
| Range without humidity (℃ / ℉) | -35 to 150 / -31 to 212 (50Hz) | ||
| -40 to 100 / -40 to 212 (60Hz) | |||
| Fluctuation (±℃ / ℉) 1) | 0.3 / 0.54 | 0.3 / 0.54 | 0.3 / 0.54 |
| Variation (±℃ / ℉) 2) | 0.5 / 0.9 | 0.5 / 0.9 | 0.5 / 0.9 |
| Heating time 3) | 60 | 60 | 60 |
| Cooling time 4) | 70 | 70 | 70 |
| Interior dimensions | |||
| Chamber volume (L / cu ft) | 25 / 0.88 | 65 / 2.3 | 100 / 3.53 |
| Width (mm / inch) | 350 / 13.8 | 400 / 15.7 | 500 / 19.7 |
| Depth (mm / inch) | 220 / 8.7 | 330 / 13 | 380 / 15 |
| Height (mm / inch) | 350 / 13.8 | 495 / 19.5 | 530 / 20.9 |
| Quantity of shelves (standard/max.) | 2/7 | 2/10 | 2/10 |
| Distance of between shelves (mm / inch) | 20 / 0.8 | 20 / 0.8 | 20 / 0.8 |
| Max. load per shelf (kg /lbs) | 25 / 55.1 | 25 / 55.1 | 25 / 55.1 |
| Permitted total load (kg / lbs) | 65 / 143.3 | 65 / 143.3 | 65 / 143.3 |
| Cable port (Ø, mm / inch) | 50 / 2 | 50 / 2 | 50 / 2 |
| Weight (kg / lbs) | 110 / 242.5 | 140 / 308.6 | 150 / 330.7 |
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
