Jacketed Standard Electrochemical Dual Holder Cell Setup


  • $ 7,02195
  • Save $ 84300

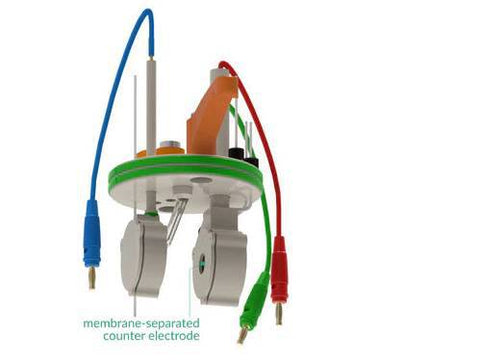

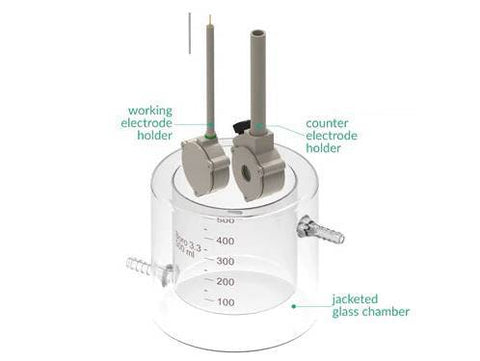

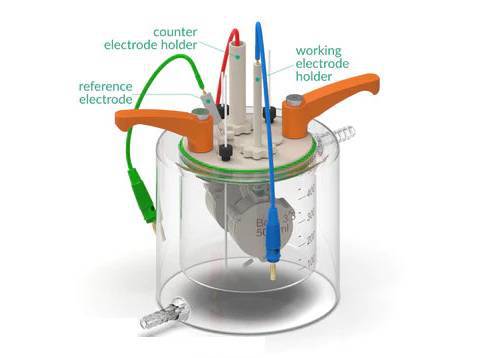

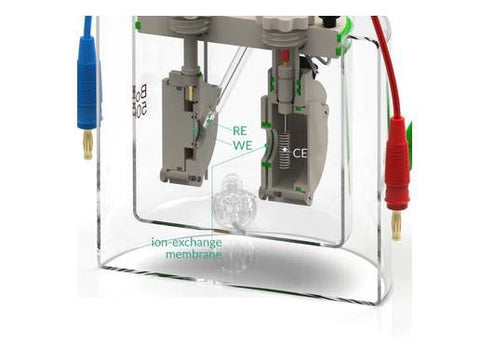

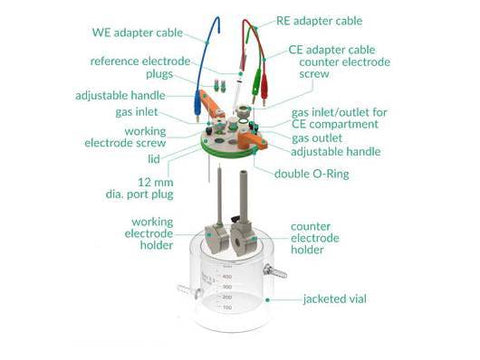

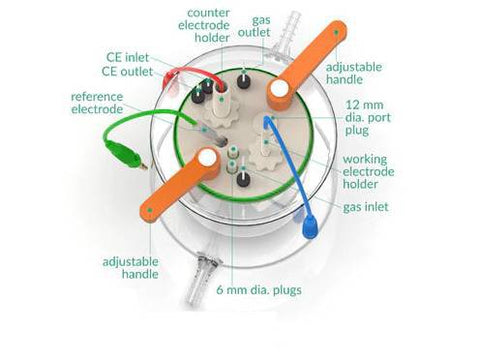

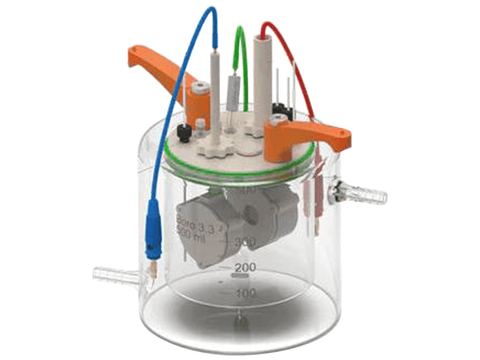

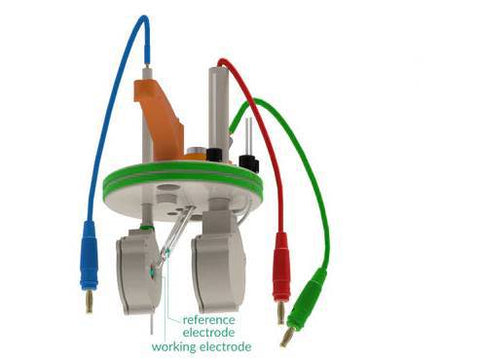

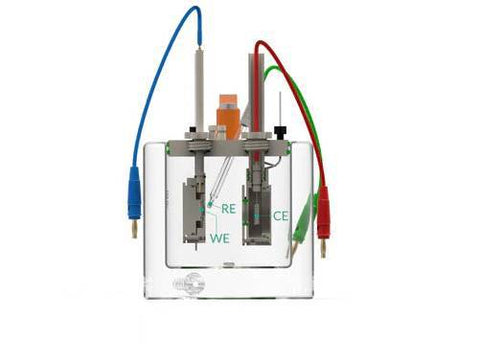

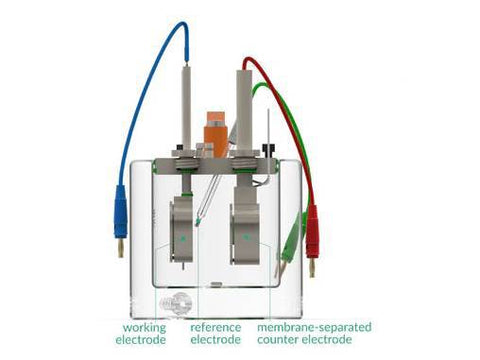

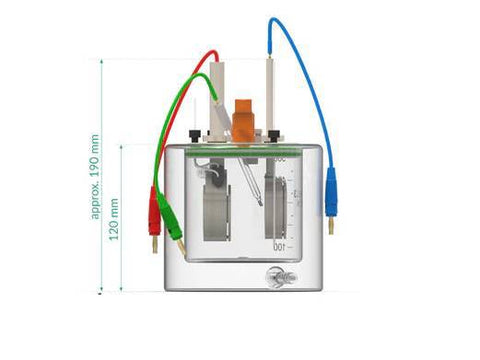

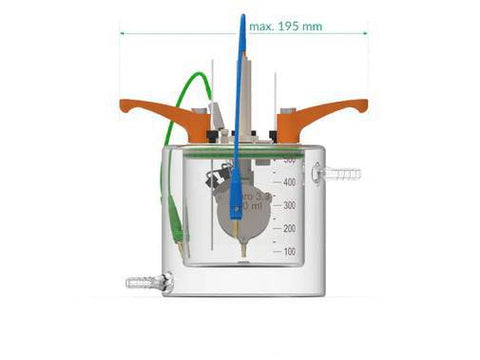

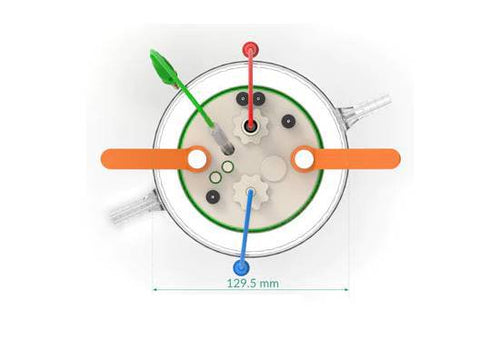

This is a stationary solution standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) plate, b) foil, c) thin film deposited on flat substrate and d) free-standing films. The working electrode is installed in the sample holder (included in the setup). Other sample holders are available on request. The counter electrode of choice is installed in a counter electrode holder (included in the setup) and separated from the other electrodes by a membrane. The Ag/AgCl or Ag/Ag+ reference electrode (other types are available on request) is mounted in the top casing if 3-electrode setup is required. A temperature of an electrolyte can be controlled by circulation of a fluid agent between thermostatic bath and the jacketed vial. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.

The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. The non-jacketed model without the temperature control is available here.

Application note:
The reference electrode tip should be placed close to a working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various 6 mm dia. auxiliary electrodes are suitable for this cell including metal wire, Graphite rod or Glassy Carbon rod.

maximum electrolyte volume: 350, 500, or 1000 mL
electrode plug diameter: 6 mm and 12 mm
number of electrode ports: 4 x 6 mm dia., 2 x 12 mm dia.
glass chamber material: borosilicate 3.3 glass
hose connector type: multi barb
recommended tube size: ID 8.0 mm

Setup includes:
1 x Jacketed standard electrochemical dual holder cell - JACKETED STD EC DUAL HOLDER CELL

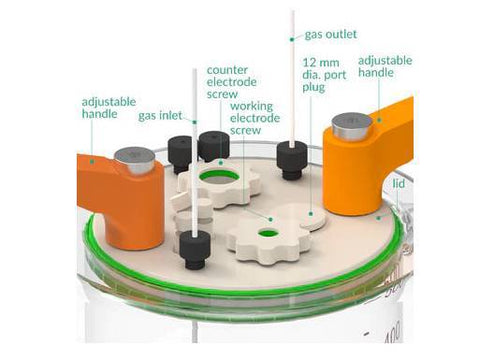

1 x lid
2 x adjustable handle

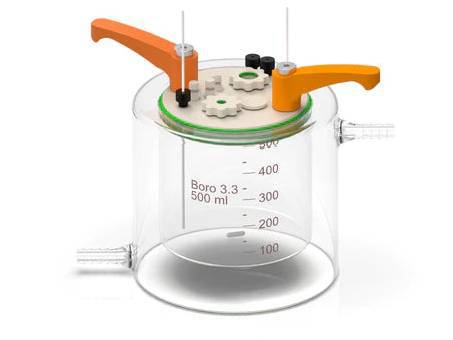

1 x jacketed glass chamber
1 x working electrode screw
1 x counter electrode screw
1 x Sample Holder 25 mm x 25 mm
1 x Counter Electrode Holder

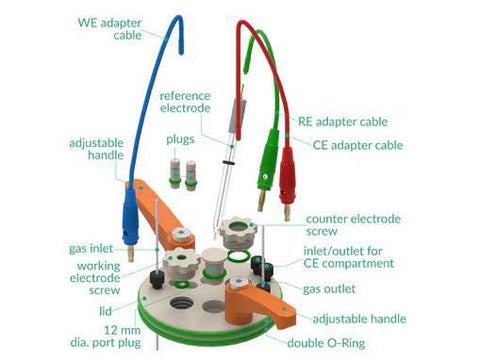

3 x 6 mm dia. plug – 0005CPEMA
1 x 12 mm dia. plug
3 x Electrode Adapter Cable
1 x Metal Wire Auxiliary Electrode - 50HX15 0.6/250 mm (Platinum)
1 x Graphite rod electrode - GR 6/70 mm
1 x Reference electrode (Ag/AgCl, or Ag/Ag+)
