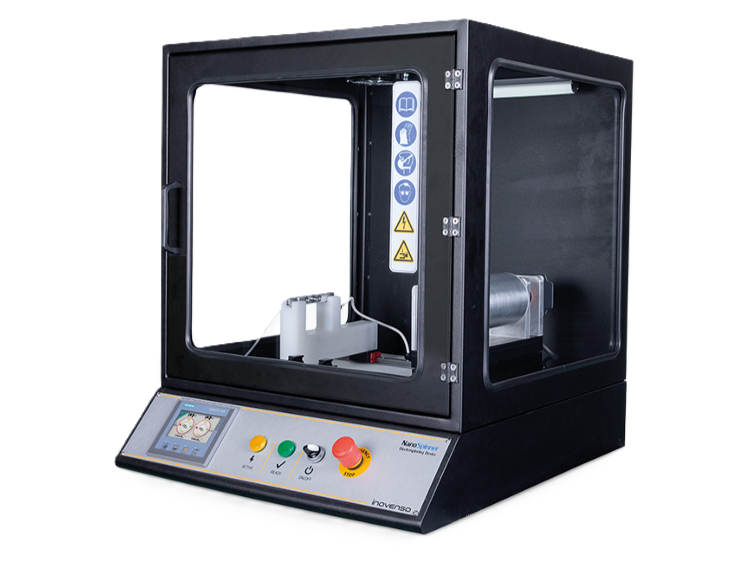

Inovenso Entry Level NS+ NanoSpinner Plus Electrospinning/Spraying Equipment
Buy Inovenso Electrospinning/Spraying Equipment from MSE Supplies at the best value.
Overview
The NS Plus is an entry level electrospinning machine, designed to accommodate the maximum components required for an optimized and versatile Electrospinning Process. It’s an ideal solution for lower-budget projects working on small-scale nanofibers research. It has 3 Hybrid Nozzles, spinning on a rotating drum collector or plate collector, therefore enabling the production of both well-aligned and randomly collected nanofibers. The homogeneity system allows the user to produce a uniform and homogeneous nanofibers membranes.
The 4.3” touch screen panel on the NS Plus offers reliable and precise process adjustments, providing significant benefits to users:
-
Ease of Use: The intuitive interface simplifies operation, making it accessible even for those with minimal technical knowledge.
-
Precision: Fine-tuning settings directly on the touch screen allows for accurate control over process parameters, enhancing the quality and consistency of results.
-
Efficiency: Quick adjustments and real-time feedback streamline workflows, reducing downtime and increasing productivity.
-
User Experience: The clear visuals and easy navigation on the large screen improve overall user satisfaction.
Optimized and Versatile Nanofiber Production for Budget-Friendly Research
The NS Plus by Inovenso is a cutting-edge electrospinning unit tailored for small-scale nanofiber production. Featuring three hybrid nozzles, it offers versatility in spinning on rotating drum or plate collectors, enabling the creation of both aligned and randomly collected nanofibers. With a focus on safety, its protected cabinet shields users from high voltage and solvent vapors. Plus, as part of the Inovenso Scale Up Program, it allows for seamless upgrades to more advanced models.
-
Versatile Nozzle Options: Equipped with three hybrid nozzles, the NS Plus enables efficient nanofiber production on rotating drum or plate collectors, catering to diverse research needs.
-
Safety First: Featuring a protected cabinet, the NS Plus ensures user safety by shielding against high voltage and solvent vapors, providing peace of mind during operation.
-
Seamless Upgradability: As part of the Inovenso Scale Up Program, the NS Plus offers easy upgrades to more advanced models, ensuring scalability as research demands evolve.
Fully Safe Electrospinning Experiment
Inovenso’s NS Plus electrospinning machine prioritizes user safety with advanced features designed to create a secure operating environment. Key safety options, including the safe-door and warning light systems, are integrated into the design to mitigate risks associated with high voltage during the electrospinning process.
-
Enhanced User Protection: The safe-door and warning light systems significantly reduce the risk of electrical accidents, providing users with a secure environment for operation.
-
Compliance with Safety Standards: These safety features ensure that the NS Plus adheres to international safety standards and regulations, offering peace of mind to users and institutions alike.
-
Operational Efficiency: By preventing accidental interruptions and ensuring safe operation, these features contribute to the overall efficiency and reliability of the electrospinning process.
-
Boosted User Confidence: With enhanced safety measures in place, users can focus on their research without concerns about safety risks, fostering greater confidence and productivity in the laboratory.
Technical Specifications:
| Description |
Entry Level Multi Nozzle Electrosprinning Unit |
| Spinning-Type |
Side By Side Spinning |
| CONSTRUCTION |
| Chassis |
Closed Chassis For Spinning Area (Included in NS 1 Plus) |
| Feeding Area Material |
PE 1000 (High Density, Chemical Resistant) |
| Collector Material |
7000 Series Aluminum Alloy, Stainless Steel |
| LED Illumination |
- |
| Exhaust Fan |
- |
| Total Weight |
Approx. 60 kgs |
| Dimensions |
W: 740 mm L: 645 mm H: 770 mm |
| HIGH VOLTAGE POWER SUPPLY |
| Voltage Range |
0 - 30 kV |
| Voltage Precision |
0.1 kV |
| Max. Current |
0.170 mA |
| HIGH PRECISION MICRO PUMP |
| Flow Rate |
0.35 - 71.23 ml/h (BD 60 ml syringe) |
| Flow Rate Precision |
0.01 ml/h |
| Available Syringes |
All types are available |
| FEEDING AREA |
| Number of Nozzles |
3 |
| Feeding Pipe Material |
Aluminium |
| Nozzle Material |
Electrically Conductive Stainless Steel |
| Nozzle Inner Diameter |
0.8 mm |
| Compatible with Standard Syringe Nozzles |
Yes |
| Minimum Required Solution for Single Nozzle Feeding |
2 ml |
| ROTATING COLLECTOR |
| Drum Collector |
Yes |
| Material |
Aluminum |
| Dimensions of Drum (D x L) |
100 mm x 220 mm |
| Fiber Deposition Area |
314 mm x 220 mm |
| Drum Rotating Speed |
100-500 RPM (Able to produce aligned nanofibers) |
| Surface Speed (cm/s) |
52.3 cm/s - 261.6 cm/s |
| Stroke of Coating Homogeneity System |
Adjustable Between 30 mm and 80 mm |
| Speed of Coating Homogeneity System |
Adjustable Between 2 mm and 20 mm/sec |
| SPINNING DISTANCE |
| Distance Between Nozzle and Collector |
30 mm - 330 mm |
| Distance Adjustment |
Manual Control |
| STATIONARY PLATE COLLECTOR |
| Material |
Stainless Steel |
| Distance Adjustment Precision |
275 mm x 150 mm |
| UNIQUE USER INTERFACE |
| 4.3" Touch screen control panel |
Well-designed, user-friendly |
| Fully able to control all parameters |
Yes |
| Saving & recalling all parameters via recipe |
Yes |
| SAFETY FUNCTION |
| Emergency Button & Safety Relay |
Yes |
| HV Warning Light |
Yes |
| Electrical Isolated & Grounded Cabinet |
Yes |
| Over Current Protection |
Yes |
