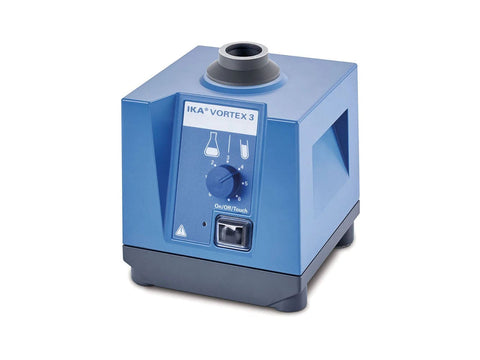

IKA Vortex 3 Shakers (2500 rpm)

  • $ 73300
  • Save $ 1500

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0003340001

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.
  • Wide speed range, infinitely adjustable
  • Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
  • Attachments securely click onto appliance in any position
  • Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks
  • Sturdy metal zinc die cast casing
  • Compact design
  • Short-time operation activated by pressing attachment (touch function)
  • Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
  • Eccentric with ball bearings
  • Suitable for continuous operation with low self heating thanks to self ventilation of motor
Shaking movement: orbital
Orbital diameter: 4 mm
Infinitely adjustable speed range: 500 - 2.500 rpm

Scope of delivery
  • VORTEX 3
  • VG 3.1 Standard attachment

                                                About IKA

                                                Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                                Technical Data of IKA Vortex 3 Shakers (2500 rpm)

                                                Type of movement orbital
                                                Shaking stroke 4 mm
                                                Permissible shaking weight (incl. attachment) 0.4 kg
                                                Motor rating input 58 W
                                                Motor rating output 10 W
                                                Permissible ON time 100 %
                                                Speed min (adjustable) 500 rpm
                                                Speed range 0 - 2500 rpm
                                                Speed display none
                                                Operating mode continuous operation
                                                Touch function yes
                                                Working with microtiter plates yes
                                                Number of microtiter plates 1
                                                Dimensions (W x H x D) 127 x 136 x 149 mm
                                                Weight 4.5 kg
                                                Permissible ambient temperature 5 - 40 °C
                                                Permissible relative humidity 80 %
                                                Protection class according to DIN EN 60529 IP 21
                                                Voltage 115 V
                                                Frequency 60 Hz
                                                Power input 60 W
