IKA VC 10 Vacuum Controller
SKU: 0020005132
IKA VC 10 Vacuum Controller
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020005132

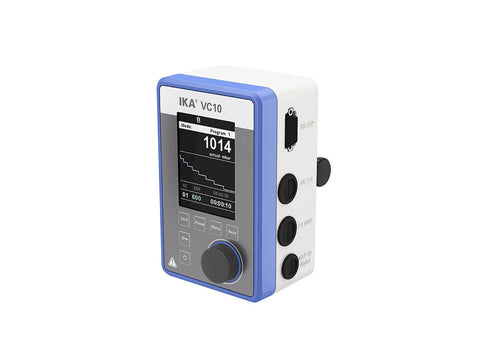

Universal vacuum controller for a two-point calibration of multiple vacuum sources. It comes with a chemo resistant ceramic pressure sensor. The high-resolution TFT display ensures intuitive operation and navigation. The ventilation valve works even during a power outage and aerates the vacuum chamber. In addition to the manual mode, up to 10 programs can be saved, with up to 10 pressure/time sequences, even allowing for saving the last experiment run. It is possible to manage the experiment via labworldsoft (RS 232 interface) and to connect an external PT 1000 temperature sensor to measure the temperature of all applications. The knob also emergency stops the controller and aerates the vacuum chamber. The longevity of the valves is supported by the cleaning function which can be adjusted for every application. The operation of the vacuum controller is facilitated by a choice of languages (menu). The firmware of the device can be regularly updated with the free Firmware Update Tool (via USB).
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VC 10 Vacuum Controller

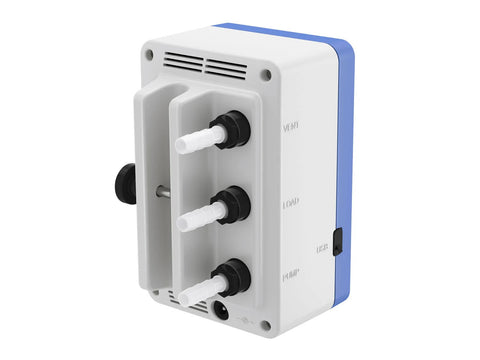

| Connection diameter suction side | 8 mm |
| Connection diameter pressure side | 8 mm |
| Connection diameter venting side | 8 mm |
| Input pressure | 1 - 1050 mbar |
| Boiling point detection | yes |
| Solvent library | yes |
| Two-point control | yes |
| Analog speed vacuum control | yes |
| Display | TFT |
| Pressure unit / scale | mbar, hPa, mmHg, Torr |
| Vacuum sensor | yes |
| Vacuum sensor type | ceramic Al2O3 |
| Pressure max. for pressure sensor | 1.6 bar |
| Measurement range (absolute) | 1 - 1100 mbar |
| Control range | 1 - 1100 mbar |
| Resolution pressure | 1 mbar |
| Measurement uncertainty | 1 mbar |
| Medium temperature (gas) | 5 - 40 °C |
| Vacuum valve | yes |
| Venting valve | yes |
| Connection for ext. temperature sensor | PT1000 |
| Temperature unit | °C / °F |
| Temperature measuring range | -10 - 200 °C |
| Temperature measurement resolution | 1 K |
| Accuracy of temperature measurement | ±1 K |
| Timer | yes |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Two dot vacuum control interface | VC2.4 |
| Vacuum speed control interface | MVP 10 digital |
| Material in contact with medium | Al2O3, PTFE, FPM, PPS |
| Housing material | PBT |

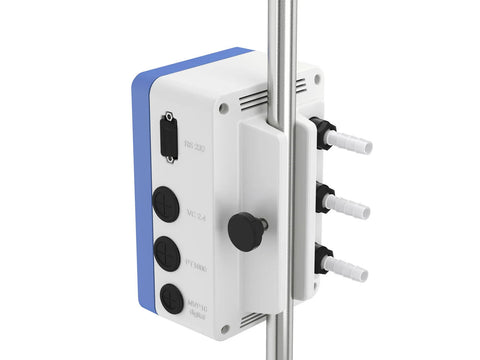

| Fastening | stand / clamp |
| Fastening diameter | 16 mm |
| Mode automatic | yes |
| Mode manual | yes |
| Mode pump % | yes |
| Mode program | yes |
| Dimensions (W x H x D) | 95 x 150 x 110 mm |
| Weight | 1.284 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 24 W |
| Power input standby | 2 W |
| DC Voltage | 24 V= |
| Current consumption | 1000 mA |
