IKA SY 500 Reactor Vessel Synthesis Reactors

  • $ 1,55595

    Product SKU: 0020113459

  • Save $ 3200

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020113459

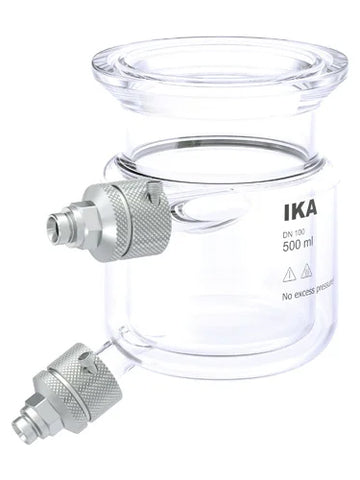

Double-walled reactor vessel including accessories for the EasySyn reactor system.
Volume: 500 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

Scope of delivery:
Glasreactor incl. metal adapter

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA SY 500 Reactor Vessel Synthesis Reactors

Volume 0.5 l
Fill level diameter ratio 1.375
Fill level at nominal volume 72 mm
Vessel inner diameter 99 mm
Vessel outer diameter 130 mm
Height (room dimension) 211 mm
Width (room dimension) 197 mm
Depth (room dimension) 141 mm
Flange type acc. DIN 12214 with circular groove
Flange dimension DN100
Flange collar diameter 108 mm
Bottom shape Torispherical head
Tempering jacket filling capacity 0.41 L
Tempering jacket inlet connection DN 15 (tech-flange)
Tempering jacket inlet inner diameter 15 mm
Vacuum application yes
Tempering jacket outlet connection DN 15 (tech-flange)
Tempering jacket oulet inner diameter 15 mm
Thread closure system M16x1
Width across flats WAF 22
Material closure system stainless steel 1.4404
Reactor vessel material borosilicate glass 3.3 DIN ISO 3585
Working temperature -50 - 230 °C
Useable volume 30 - 610 ml
Useable volume with temperature probe min. 260 ml
Pressure max. atmospheric pressure
Attainable vacuum 3 mbar
Material in contact with medium borosilicate glass 3.3 DIN ISO 3585
