IKA SY 2000 D Reactor Vessel Synthesis Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020113464

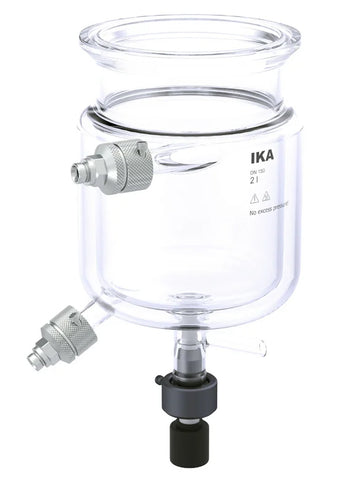

Double-walled reactor vessel with bottom discharge including accessories for the EasySyn reactor system.
Volume: 2000 ml
Flange size: DN 150
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.
Scope of delivery:
Glasreactor incl. metal adapter
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SY 2000 D Reactor Vessel Synthesis Reactors
| Volume | 2 l |
| Fill level diameter ratio | 1.22 |
| Fill level at nominal volume | 123 mm |
| Vessel inner diameter | 150 mm |
| Vessel outer diameter | 190 mm |
| Height (room dimension) | 383 mm |
| Width (room dimension) | 243 mm |
| Depth (room dimension) | 195 mm |
| Flange type | acc. DIN 12214 with circular groove |
| Flange dimension | DN150 |
| Flange collar diameter | 159 mm |
| Bottom shape | Torispherical head |
| Bottom drain | yes |
| Bottom valve | Safety valve |
| Bottom drain outlet inner diameter | 10 mm |
| Bottom drain outlet outer diameter | 15 mm |
| Bottom drain outlet length | 65 mm |
| Bottom drain shape | straight |
| Tempering jacket filling capacity | 0.99 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Thread closure system | M16x1 |
| Width across flats | WAF 22 |
| Material closure system | stainless steel 1.4404 |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 - 200 °C |
| Useable volume | 120 - 2300 ml |
| Useable volume with temperature probe min. | 400 ml |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
| Material in contact with medium | borosilicate glass 3.3 DIN ISO 3585, PTFE |
