IKA SY 100.1 Reactor Lid Synthesis Reactors

  • $ 54595
  • Save $ 6600


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020113649

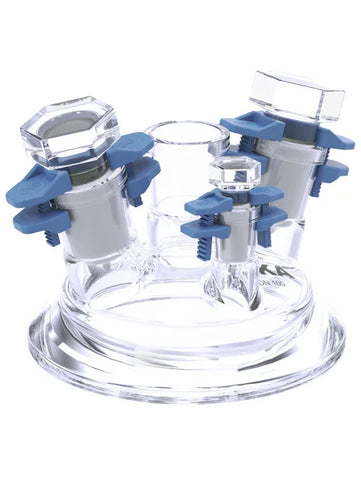

Reactor lid for the EasySyn reactor system.
Flange size: DN 100.
Suitable for reactor vessels with volumes of 500 ml (SY 500 and SY 500 D) and 1000 ml (SY 1000 and SY 1000 D).
Openings: 3 x NS 29/32, 1 x NS 14/23.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA SY 100.1 Reactor Lid Synthesis Reactors

Height (room dimension) 95 mm
Outer diameter 138 mm
Flange type acc. DIN 12214
Flange dimension DN100
Vacuum application yes
Lid center neck NS 29/32
Lid side necks 2x NS 29/32, 1x NS 14/23
Reactor lid material borosilicate glass 3.3 DIN ISO 3585
Working temperature -50 - 230 °C
Pressure max. atmospheric pressure
Attainable vacuum 3 mbar
