IKA SP-9 Viscometers (40°C) - MSE Supplies LLC

IKA SP-9 Viscometers

  • $ 8195
  • Save $ 1000


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025006836

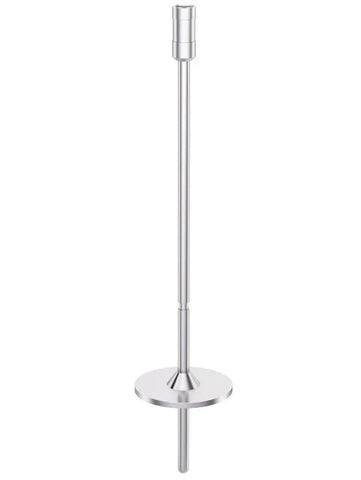

Standard spindle

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA SP-9 Viscometers

Spindle geometry Disc
Connection Thread M2.5 LH
Quick plug connector yes
Hook connector yes
Diameter 27.3 mm
Immersion depth 49.2 mm
Spindle length 133 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 93.7 mPa.s
Max. FSR match ROTAVISC lo-vi 18746 mPa.s
Min. FSR match ROTAVISC me-vi 1000.0 mPa.s
Max. FSR match ROTAVISC me-vi 200000.0 mPa.s
Min. FSR match ROTAVISC hi-vi I 2000.0 mPa.s
Max. FSR match ROTAVISC hi-vi I 400000 mPa.s
Min. FSR match ROTAVISC hi-vi II 8000 mPa.s
Max. FSR match ROTAVISC hi-vi II 1600000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 32 x 135 x 32 mm
Weight 0.020 kg
Permissible ambient temperature 5 - 40 °C
