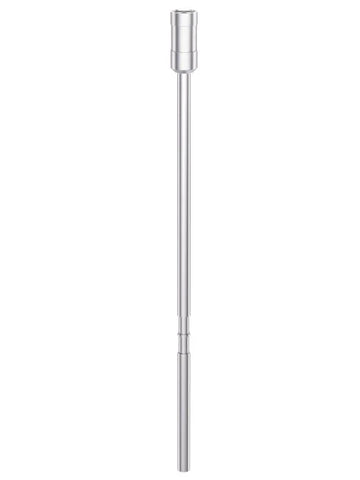

IKA SP-4 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025006831
Standard spindle
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SP-4 Viscometers
| Spindle geometry | Cylinder |
| Diameter | 3.2 mm |
| Immersion depth | 31 mm |
| Spindle length | 115 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 2999.4 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 599872 mPa.s |
| Min. FSR match ROTAVISC me-vi | 32000.0 mPa.s |
| Max. FSR match ROTAVISC me-vi | 6400000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 64000.0 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 12800000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 256000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 51200000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 8 x 117 x 8 mm |
| Weight | 0.009 kg |
| Permissible ambient temperature | 5 - 40 °C |
