IKA RET Basic Magnetic Stirrers (1700rpm, 340°C) - MSE Supplies LLC

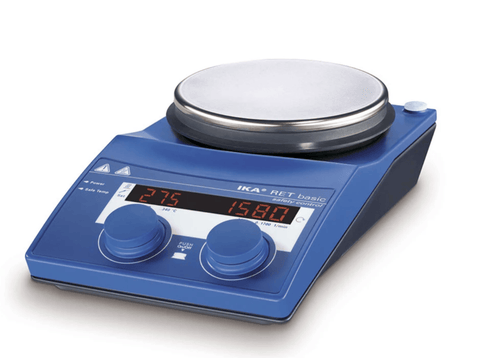

IKA RET Basic Magnetic Stirrers (1700rpm, 340°C)

  • $ 1,28900
  • Save $ 13400


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0003622001

Wide speed range from 0/50 - 1700 rpm
Integrated temperature control
Incl. PT 1000 temperature sensor (PT 1000.60)
Exact temperature and speed setting via digital display, even when switched off
Set safety temperature limit displayed digitally
Hot Top indicator >> hot surface warning to prevent burns!
Digital error code display

  • With adjustable safety circuit of heating plate temperature (50 - 380 °C)
  • Safety magnetic stirrer with heating, suitable for unsupervised operation
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • High level of safety thanks to improved heat control technology
  • Enclosed assembly (IP 42) guarantees long service life
  • Very broad temperature range (RT - 340 °C)
  • Extremely fast heating times
  • Electronic speed control
  • High magnetic adhesion
  • Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5)

Scope of delivery

  • RET basic magnetic stirrer
  • PT 1000.60 Temperature sensor, stainless steel
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • Screw driver
  • Protection cover

        About IKA

        Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

        Technical Data of IKA RET Basic Magnetic Stirrers (1700rpm, 340°C)

        Number of stirring positions 1
        Stirring quantity max. per stirring position (H2O) 20 L
        Motor rating output 9 W
        Direction of rotation right
        Speed display set-value LED
        Speed display actual-value LED
        Speed adjustment Turning knob
        Speed range 50 - 1700 rpm
        Setting accuracy speed 1 rpm
        Stirring bar length 20 - 80 mm
        Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +15 K
        Heat output 600 W
        Temperature display set-value LED
        Temperature display actual-value LED
        Temperature unit °C
        Heating temperature range Room temp. + device self heating - 340 °C
        Heat control Turning knob
        Temperature setting range 0 - 340 °C
        Heating rate heating plate 7 K/min
        Temperature setting resolution of heating plate 1 K
        Connection for ext. temperature sensor PT1000
        Temperature setting resolution of medium 1 K
        Adjustable safety circuit 50 - 360 °C
        Set-up plate material stainless steel 1.4301
        Set-up plate dimensions Ø 135 mm
        Sensor in medium detection (Error 5) yes
        Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) ±1 K
        Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) ±0.5 K
        Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) ±0.2 K
        Dimensions (W x H x D) 160 x 95 x 270 mm
        Weight 2.5 kg
        Permissible ambient temperature 5 - 40 °C
        Permissible relative humidity 80 %
        Protection class according to DIN EN 60529 IP 42
        Voltage 115 V
        Frequency 50/60 Hz
        Power input 630 W
