IKA OVEN 125 Control - Drying Ovens

  • $ 4,77000
  • Save $ 9700


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020003991

The models in the IKA Oven 125 dry series are powerful drying cabinets for temperature regulation, drying, ageing and heating tasks. Rapid heating and exact temperature regulation guarantee reproducible results in industrial laboratories, schools and universities, research, quality control or science. Thanks to its high quality insulation, the device has a very large interior of 125 l in relation to its total volume. This structure also reduces odor emissions and operating costs and ensures excellent temperature uniformity.

The Oven 125 control dry recirculating air drying cabinet heats up to 300 °C. The additional temperature selection limited TWB (DIN 12880) meets the highest security requirements. Furthermore, the temperature curve can be monitored during testing independently of the safety temperature. This means that your test material is always protected.

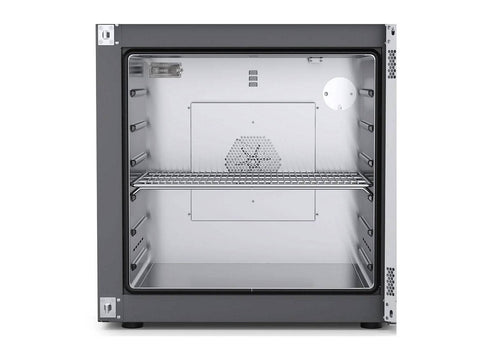

A well thought out interior
The generously dimensioned interior of the Oven 125 control dry is comfortably illuminated. A practical cable bushing at the rear of the device is provided as standard for measurements in the oven or in the test material. The fan switches off automatically if the door is open. Up to 6 insertable shelves can be accommodated in the interior made of stainless steel.

Interfaces
The Oven 125 control dry offers an interface for an additional sensor for direct temperature regulation in the test material. Test parameters can be stored directly on a USB stick.

Two displays
All important process parameters are displayed clearly on two large TFT displays. The temperature profiles and individual user profiles can be entered via the intuitive user interface. The real-time clock enables convenient digital documentation and a time-delayed start.

Scope of delivery

  • IKA OVEN 125 control - dry
  • IO T 1.00 (2 pcs.)
  • Tilt protection (2 pcs.)
  • Screwdriver (for adjustment of temperature limit)
  • USB cable
  • Calibration certification

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA OVEN 125 Control - Drying Ovens

Heat output 1500 W
Working temperature room temp. +5 - 300 °C
Adjustable safety circuit 50 - 320 °C
Adjustment and display resolution 0.1 K
Temperature stability (150°C, center, standard door) ±0.5 K
Temperature display yes
Timer yes
Timer display LCD
Time setting range 1 - 142560 min
Number of trays max. 6
Load for one tray max. 30 kg
Operating area inner chamber 550 x 525 x 450 mm
Total volume inner chamber 125 l
Air outlet port diameter inside 48 mm
Dimensions (W x H x D) 700 x 825 x 650 mm
Weight 82 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 115 V
Frequency 50/60 Hz
Power input 1600 W
Power input standby 2 W
