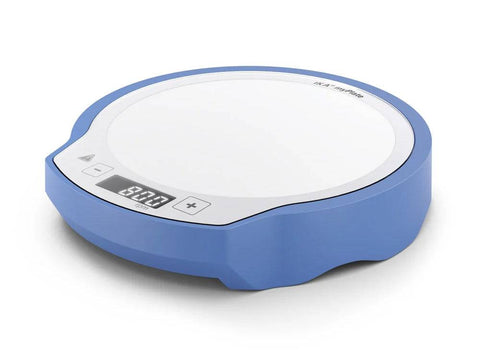

IKA myPlate Magnetic Stirrers (2500rpm, 1.5L)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025005156
IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization.

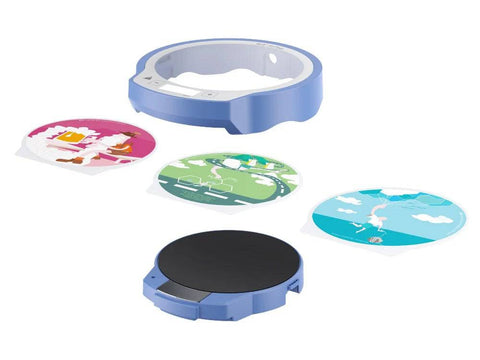

Personal interchangeable frame
Design the set-up plate of the IKA myPlate by yourself. You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame. Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures.
Proven high functionality
Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA.
- High chemical resistance
- Electronically controlled motor
- Digital speed indicator
- Speed range between 100 and 2500 rpm
Scope of delivery
- IKA myPlate
- Blank photo papers (10 pcs.)
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA myPlate Magnetic Stirrers (2500rpm, 1.5L)
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 1.5 L |
| Motor rating output | 2 W |
| Direction of rotation | left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range | 100 - 2500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length max. | 30 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +2 K |
| Set-up plate material | glass |
| Set-up plate dimensions | Ø 135 mm |
| Dimensions (W x H x D) | 152 x 30 x 164 mm |
| Weight | 0.76 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 4 W |
| Power input standby | 1 W |
| DC Voltage | 12 V= |
| Current consumption | 300 mA |
