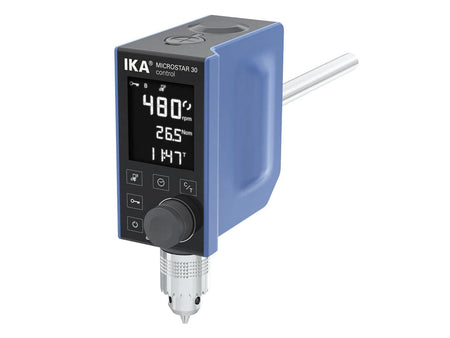

IKA MICROSTAR 30 Control Overhead Stirrers (20 L, 500 rpm)

  • $ 2,04300
  • Save $ 4200


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025005286

The new MICROSTARS series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
  • Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
  • State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
  • Clear display for all essential information at a glance
  • Integrated timer / counter for the control of kinetic sensitive reactions and reminders
  • Viscosities up to 20,000 mPas and volumes of up to 20 L
  • Continuously adjustable speed between 0/30 – 500 rpm
  • USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
  • Intuitive and simple handling; touch-sensitive surface for long service life
  • Temperature reading on display
  • Chemical resistant housing
  • Key lock function
  • Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Scope of delivery
  • MICROSTAR 30 control
  • R 300 shaft protector
  • Fasten screws for R 300 (2 pcs.)
  • H 67.60 Temperature sensor, stainless steel
  • chuck key

                                            About IKA

                                            Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                            Technical Data of IKA MICROSTAR 30 Control Overhead Stirrers (20 L, 500 rpm)

                                            Stirring quantity max. per stirring position (H2O) 20 L
                                            Motor rating input 32 W
                                            Motor rating output 22 W
                                            Motor principle Brushless DC
                                            Speed display LCD
                                            Speed range 0/30 - 500 rpm
                                            Viscosity max. 20000 mPas
                                            Output max. at stirring shaft 15.7 W
                                            Permissible ON time 100 %
                                            Torque max. at stirring shaft 30 Ncm
                                            Speed adjustment Turning knob
                                            Setting accuracy speed ±1 rpm
                                            Deviation of speed measurement n > 300rpm ±1 %
                                            Deviation of speed measurement n < 300rpm ±3 rpm
                                            Stirring element fastening chuck
                                            Connection for ext. temperature sensor PT1000
                                            Temperature display yes
                                            Chuck range diameter 0.5 - 8.2 mm
                                            Hollow shaft, inner diameter 8.5 mm
                                            Hollow shaft (push-through - when stopped) yes
                                            Fastening on stand extension arm
                                            Extension arm diameter 13 mm
                                            Extension arm length 160 mm
                                            Torque display yes
                                            Speed control electronic
                                            Nominal torque 0.3 Nm
                                            Torque measurement trend
                                            Deviation of torque measurement I ±3 Ncm
                                            Timer yes
                                            Timer display LCD
                                            Time setting range 0 - 6000 min
                                            Temperature measuring range -10 - 350 °C
                                            Temperature measurement resolution 0.1 K
                                            Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
                                            Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
                                            Housing material alu-cast coating / thermoplastic polymer
                                            Communication distance (depend onbuilding) max. 150 m
                                            Dimensions (W x H x D) 60 x 173 x 136 mm
                                            Weight 1.26 kg
                                            Permissible ambient temperature 5 - 40 °C
                                            Permissible relative humidity 80 %
                                            Protection class according to DIN EN 60529 IP 54
                                            USB interface yes
                                            Voltage 100 - 240 V
                                            Frequency 50/60 Hz
                                            Power input 32 W
                                            DC Voltage 24 V
                                            Current consumption 1300 mA
