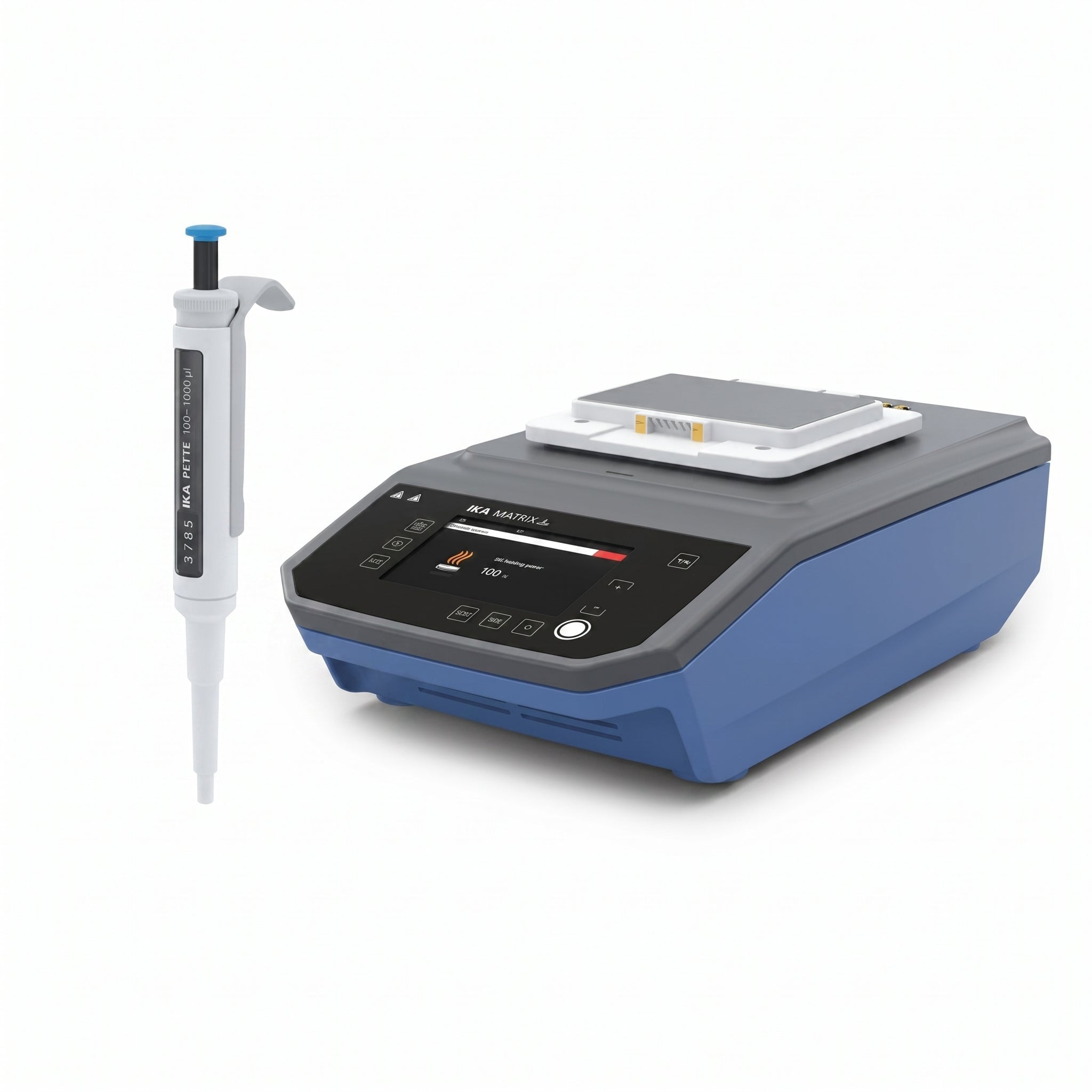

IKA MATRIX Orbital Delta Plus Thermoshakers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010007272
Matrix Delta plus heats and cools reliably with variable inserts. Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably tempered in all laboratory applications.In addition, Matrix Delta plus comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for an intuitive operation
- Reduced waiting time through fast heating and cooling rates of up tp 5.5 °C/min (heating) or 2 °C/min (cooling, at set-point temperature between ambient temperature and 30 °C below ambient temperature)
- Firm quick-release fastener for quick and easy changing of the inserts/attachments as well as an automatic attachment detection
- Automatic performance of heating and cooling tasks through programmable ramps
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
The device is ideally suited for numerous applications in laboratories, such as:
- Tempering of samples
- Synthesis of cDNA
- Enzyme-catalysed linking of RNA or DNA (ligation)
- Gentle thawing of sample material
- Structural change of DNA, RNA and proteins (denaturation)
- ELISA assays
Scope of delivery
- MATRIX Delta Plus
- IKA PETTE vario 100-1000 µl
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
| Maximun load |
0.3 kg |
| Permissible ON time |
100 % |
| Timer |
yes |
| Timer display |
TFT |
| Time setting min. |
1 s |
| Time setting max. |
6000 min |
| Operating mode |
timer, continuous and program operation |
| Working with microtiter plates |
yes |
| Working temperature min. |
room temp. -30 ±2 °C |
| Temperature setting range min. |
-10 °C |
| Heating temperature max. |
110 °C |
| Heat output |
100 W |
| Heat control |
TFT |
| Set temperature resolution |
±1 °C |
| Temperature control accuracy |
±0.5 °C |
| Temperature stability |
0.5 °C |
| Temperature homogenity |
±0.5 °C |
| Heating rate |
5.5 °C/min |
| Temperature display |
yes |
| Cooling Rate |
2 °C/min |
| Cooling Power |
72 W |
| embedded cooling unit |
yes |
| Number of exchangable attachments |
10 |
| Fixed safety circuit |
145 °C |
| Dimensions (W x H x D) |
216 x 127 x 351 mm |
| Weight |
9.5 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
230 W |
| Fuse |
2x T4A 250V |
