IKA MATRIX Orbital Delta FP Thermoshakers

  • $ 2,70500
  • Save $ 5500


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010006512

The IKA Matrix Orbital Δ FP is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital Δ FP mixes, heats and has a universal holder for microtiter plates. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.

In addition, IKA Matrix Orbital Δ FP comes with numerous user-friendly features:
  • Large and clear display with a convenient menu structure allows for intuitive operation
  • Stable quick lock for fast and easy change of inserts and attachments as well as automatic attachment detection
  • Speeds of up to 2,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
  • Two different speed modes for gentle heating of the samples
  • Programmable ramps allow for automatic execution of mixing and heating tasks
  • Smart speed adjustment according to insert, attachment and filling volume
  • Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
Scope of delivery

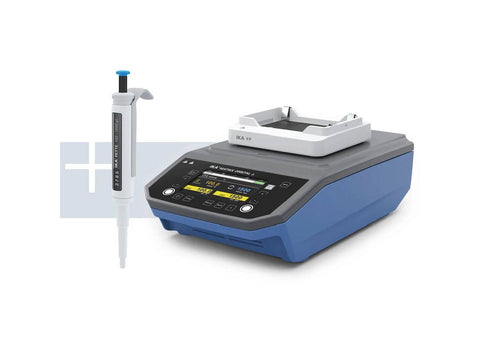

  • MATRIX Orbital Delta FP
  • IKA PETTE vario 100-1000 µl

                                              About IKA

                                              Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                              Technical Data of IKA MATRIX Orbital Delta FP Thermoshakers

                                              Type of movement orbital
                                              Shaking stroke 3 mm
                                              Maximun load 0.3 kg
                                              Permissible ON time 100 %
                                              Speed min (adjustable) 300 rpm
                                              Speed range 0 - 2000 rpm
                                              Speed display TFT
                                              Speed deviation ±30 rpm
                                              Speed adjustment 10 RPM Steps
                                              Timer yes
                                              Timer display TFT
                                              Time setting min. 1 s
                                              Time setting max. 6000 min
                                              Operating mode timer, continuous and program operation
                                              Working with microtiter plates yes
                                              Number of microtiter plates 1
                                              Heating temperature range room temp. +4° - 100 °C
                                              Heat output 100 W
                                              Heat control TFT
                                              Set temperature resolution ±1 °C
                                              Temperature control accuracy ±1.0 (@ 20°C … 45°C); ±4.0 °C
                                              Temperature stability 0.5 °C
                                              Temperature homogenity ±0.5 (@ 20°C ... 45°C); ±1.5 °C
                                              Heating rate 18 °C/min
                                              Temperature display yes
                                              Number of PCR plates 1
                                              Number of Deep Well Plates (DWP) 1
                                              Dimensions (W x H x D) 216 x 147 x 351 mm
                                              Weight 9.2 kg
                                              Permissible ambient temperature 5 - 40 °C
                                              Permissible relative humidity 80 %
                                              Protection class according to DIN EN 60529 IP 21
                                              RS 232 interface yes
                                              USB interface yes
                                              Voltage 100 - 240 V
                                              Frequency 50/60 Hz
                                              Power input 240 W
                                              Power input max. 240 W
                                              Fuse 2x T4A 250V
