IKA LT 5.40 Draining Set Synthesis Reactors (-50 - 230 °C) - MSE Supplies LLC

IKA LT 5.40 Draining Set Synthesis Reactors

  • $ 2,39800
  • Save $ 4900


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020113266

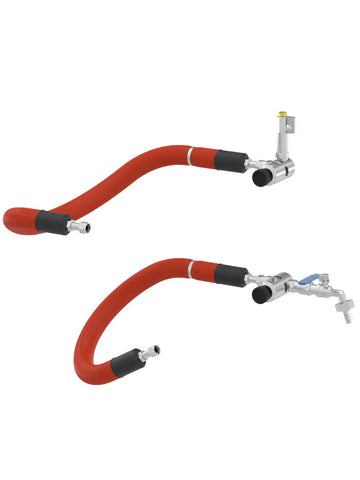

This venting and draining set including temperature hoses enables the tension-free installation of the temperature hoses on all double-walled reactor vessels of the EasySyn reactor system.
By using the venting and draining valves, which can be directly attached to the stand of the reactor, an easy and clean draining of the thermal fluid is possible.
Connection from LT 5.40 draining set to circulator tubing: M 16x1.

Scope of delivery:
Venting valve
Draining valve
2 x temperature hoses to connect the double-walled reactor vessel with the valves

Note: The scope of delivery does not include temperature hoses for connecting a thermostat.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA LT 5.40 Draining Set Synthesis Reactors

Thread closure system M16x1
Width across flats WAF 19, WAF 22
Material closure system stainless steel 1.4404
Material insulation Silicone foam hose
Working temperature -50 - 230 °C
Pressure max. 3 bar
