IKA LR-2.ST Starvisc 200 High Viscosity Reactors (6 rpm, -230°C)

  • $ 19,47495
  • Save $ 2,33700

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020020604

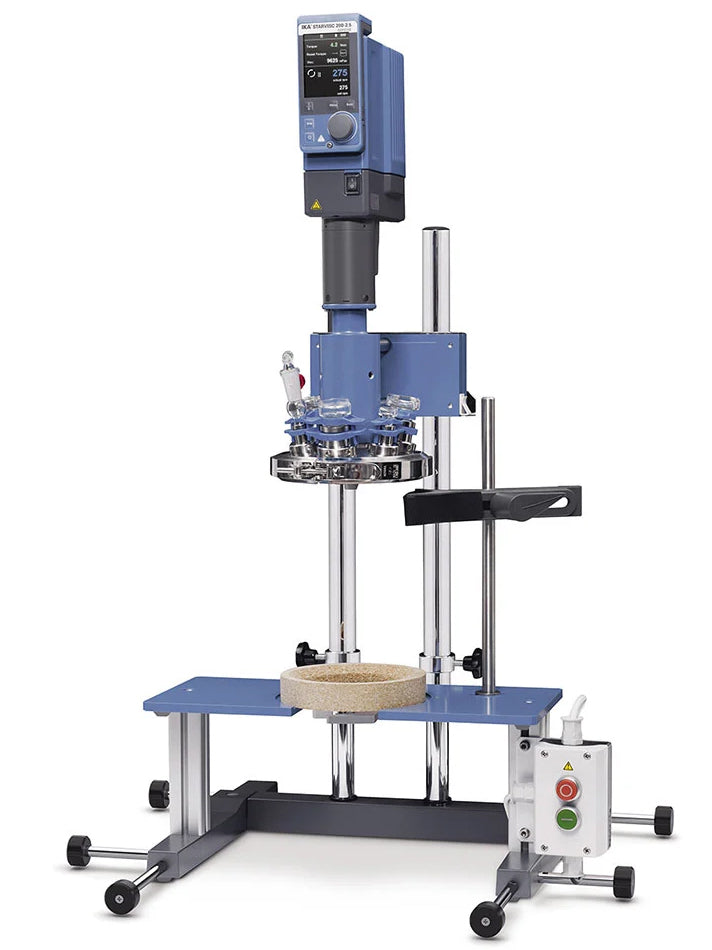

LR-2.ST Starvisc 200 is a modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.

The reactor system is particularly helpful during product development because the torque-measurement stirrer STARVISC 200-2.5 control already clearly indicates while running research programmes as to whether the stirred substance can be used as desired. The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque. In combination with STARVISC it is possible to intensively stir even highly viscous substances and at the same time display their viscosity.

In addition, ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

  • Suitable for vacuum operation
  • Components in contact with sample are made of solvent- and temperature-resistant Perfluoroelastomer (FFPM)
  • Infinitely variable speed
  • Torque trend display for measuring changes in viscosity
  • Microprocessor-controlled speed regulation, enables steady speed, also under load
  • Removable WiCo (wireless controller) for remote and safe use in a fume hood

Scope of delivery

  • LR-2.ST
  • LR-2.SI
  • STARVISC 200-2.5 control

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA LR-2.ST Starvisc 200 High Viscosity Reactors (6 rpm, -230°C)

Useable volume 500 - 2000 ml
Working temperature room temp. - 230 °C
Attainable vacuum 25 mbar
Viscosity max. 100000 mPas
Speed min. 6 rpm
Telescope stand stroke 390 mm
Material in contact with medium borosilicate glass, FFPM, PTFE, steel 1.4571
Reactor vessel openings (units/standard) 3/NS 29/32 2/NS 14/23
Torque max. at stirring shaft 200 Ncm
Dimensions (W x H x D) 460 x 1240 x 430 mm
Weight 25 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
