IKA KS 4000 i Control Shakers (500 rpm)

  • $ 9,07095
  • Save $ 1,08900

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0003510001

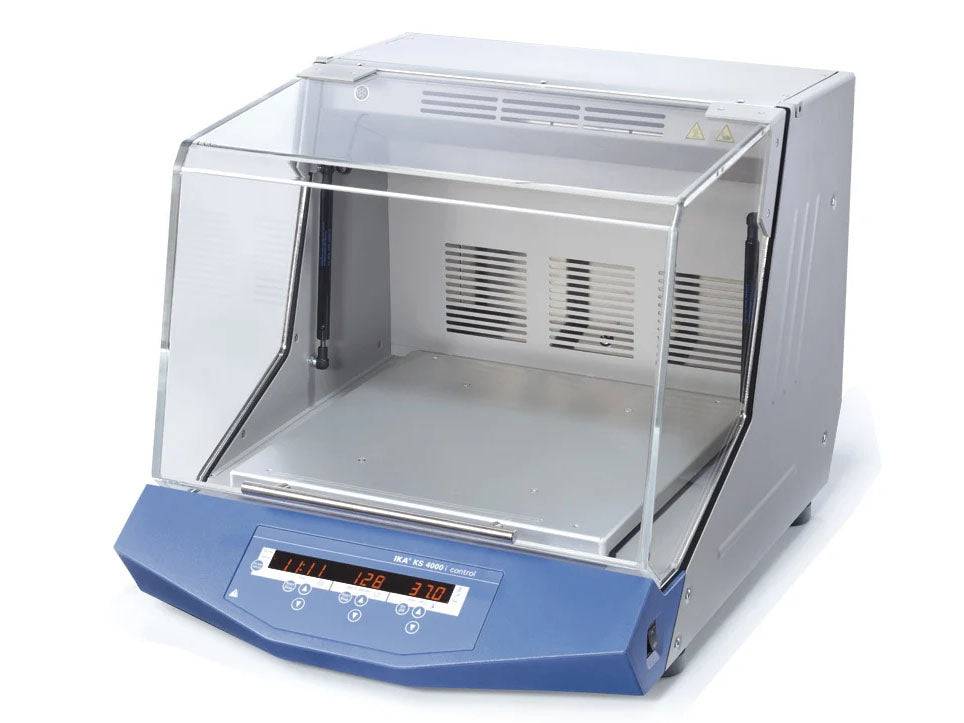

Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
  • Large LED display for speed and time settings
  • Controls with antimicrobial coating for reduction of bacteria
  • Integrated PID temperature control (use of two PT 1000 temperature sensors)
  • Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
  • Electronic temperature and speed control
  • Electronic timer switch: 0 - 999 h (set by the minute or by the hour)
  • Unit switches off automatically if disturbed
  • Unit stops automatically when hood is lifted
  • Collecting tray with drain hose on rear of unit
  • Simple operation
  • All functions can be controlled and documented with labworldsoft®
  • Attachements are not included in delivery, please order separately
Scope of delivery
  • KS 4000 i control
  • PT 1000.60 Temperature sensor, stainless steel
  • Clamping screws short (4 pcs.)
  • Clamping screws long (2 pcs.)
  • Cable RS 232

                                                            About IKA

                                                            Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                                            Technical Data of IKA KS 4000 i Control Shakers (500 rpm)

                                                            Type of movement orbital
                                                            Shaking stroke 20 mm
                                                            Permissible shaking weight (incl. attachment) 20 kg
                                                            Motor rating input 82 W
                                                            Motor rating output 24 W
                                                            Permissible ON time 100 %
                                                            Speed min (adjustable) 10 rpm
                                                            Speed range 10 - 500 rpm
                                                            Speed display LED
                                                            Speed deviation ±5 rpm
                                                            Speed adjustment 1 RPM steps
                                                            Timer yes
                                                            Timer display 7 segment LED
                                                            Time setting range 1 - 59940 min
                                                            Operating mode timer and continuous operation
                                                            Heating temperature range room temp. +5° - 80 °C
                                                            Heat output 1000 W
                                                            Set temperature resolution ±0.1 K
                                                            Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) ±0.5 K
                                                            Temperature display yes
                                                            Temp. stability (0,2l H2O; RT 25°C, T=37°C) ±0.1 K
                                                            Operating area inner chamber 440 x 440 x 352 mm
                                                            Total volume inner chamber 90 l
                                                            Raw material housing Sheet metal powder coat
                                                            Raw material front foil polyester
                                                            Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) ±0.05 K
                                                            Temperature homogeneity (5 vessel 0.5 L; RT 25°C, T=37°C) ±0.5 K
                                                            Height with open hood 875 mm
                                                            Dimensions (W x H x D) 580 x 520 x 750 mm
                                                            Weight 50 kg
                                                            Permissible ambient temperature 15 - 32 °C
                                                            Permissible relative humidity 80 %
                                                            Protection class according to DIN EN 60529 IP 30
                                                            RS 232 interface yes
                                                            Voltage 115 V
                                                            Frequency 50/60 Hz
                                                            Power input 1120 W
                                                            Fuse 2x T16A 250V
