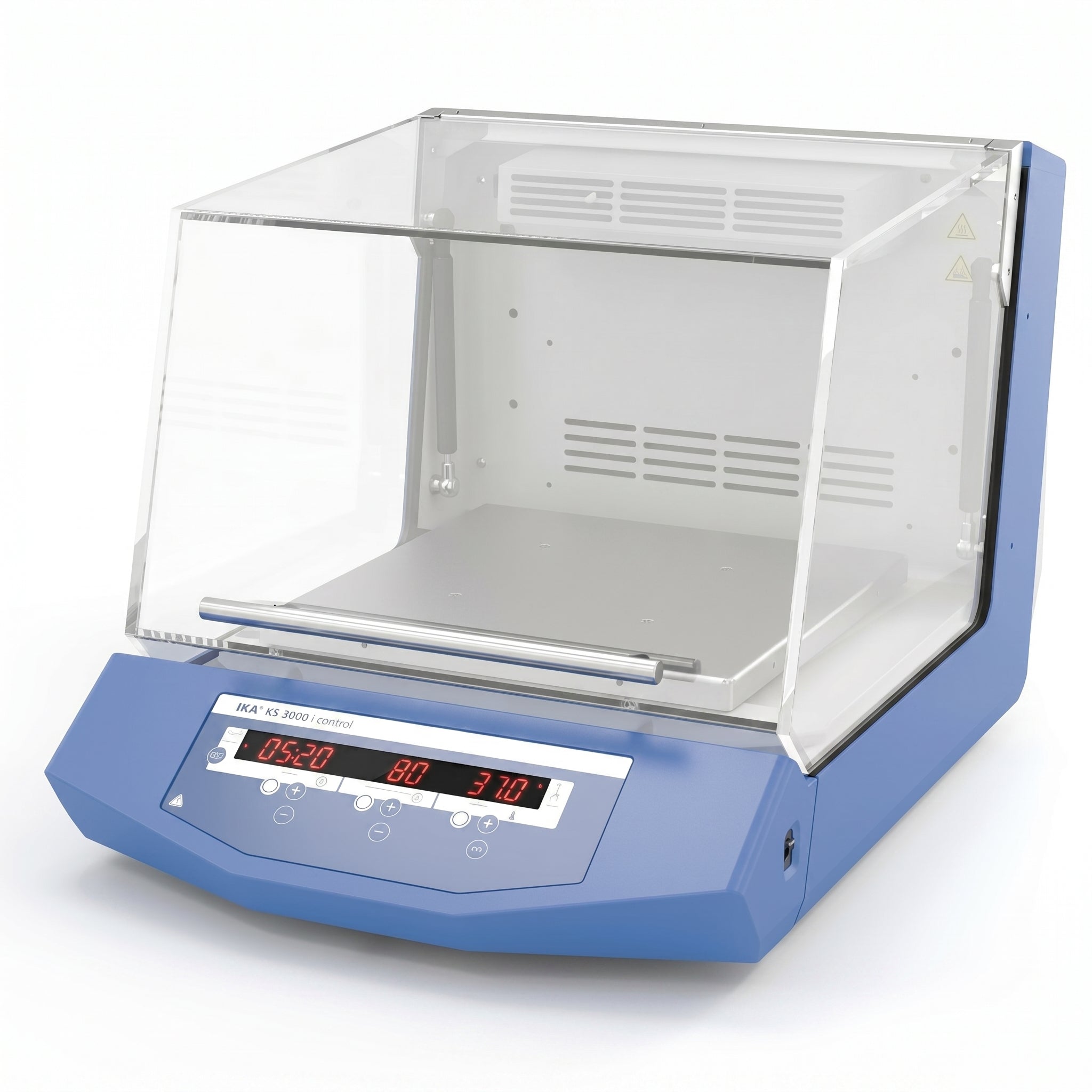

IKA KS 3000 ic Control Shakers (500 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0003940101
Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
- Large LED display for speed and time settings
- Controls with antimicrobial coating for reduction of bacteria
- Integrated PID temperature control (use of two PT 1000 temperature sensors)
- Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
- Electronic temperature and speed control
- Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
- Built-in cooler for connection to an external cooling unit e.g. RC 2 basic / control
- Unit switches off automatically if disturbed
- Unit stops automatically when hood is lifted
- Collecting tray with drain hose on rear of unit
- Simple operation
- All functions can be controlled and documented with labworldsoft®
- Attachments are not included in delivery, please order separately
Scope of delivery
- KS 3000 ic control
- PT 1000.80 Temperature sensor, stainless steel
- Clamping screws short (4 pcs.)
- PC 1.1 Cable
- USB cable
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
| Type of movement |
orbital |
| Shaking stroke |
20 mm |
| Permissible shaking weight (incl. attachment) |
7.5 kg |
| Motor rating input |
45 W |
| Motor rating output |
10 W |
| Permissible ON time |
100 % |
| Speed min (adjustable) |
10 rpm |
| Speed range |
10 - 500 rpm |
| Speed display |
LED |
| Speed deviation |
1 % |
| Speed adjustment |
1 RPM steps |
| Timer |
yes |
| Timer display |
7 segment LED |
| Time setting min. |
1 s |
| Time setting range |
1 - 59940 min |
| Operating mode |
timer and continuous operation |
| Heat output |
1000 W |
| Set temperature resolution |
±0.1 K |
| Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) |
±0.5 K |
| Temperature display |
yes |
| Temp. stability (0,2l H2O; RT 25°C, T=37°C) |
±0.1 K |
| Temperature range (inlet T>3°C) |
12 - 80 °C |
| Operating area inner chamber |
330 x 330 x 258 mm |
| Total volume inner chamber |
50 l |
| Raw material housing |
Sheet metal powder coat |
| Raw material hood |
PMMA |
| Raw material front foil |
polyester |
| Raw material front panel |
ABS painted |
| Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) |
±0.05 K |
| Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C) |
±0.5 K |
| Height with open hood |
875 mm |
| Dimensions (W x H x D) |
465 x 430 x 695 mm |
| Weight |
37 kg |
| Permissible ambient temperature |
15 - 32 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 30 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
115 V |
| Frequency |
50/60 Hz |
| Power input |
1120 W |
