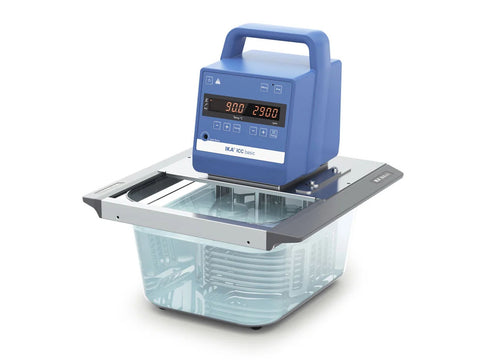

IKA ICC Basic Eco 8 Temperature Control
SKU: 0010000853
IKA ICC Basic Eco 8 Temperature Control
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010000853
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.
Package includes
- ICC basic compact immersion circulator
- IB 8 eco plastic bath (size S)
- BS.ICC small bridge
total: 320 x 335 x 349 mm
bath opening: 188 x 105 mm *
max. bath opening: 227 x 118 mm **
Immersion depth. 85 mm–125 mm
*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
Scope of delivery
- ICC basic eco 8
- ICC basic
- IB 8 eco
- BS.ICC Small bridge
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA ICC Basic Eco 8 Temperature Control
Appliance type | Compact immersion circulators |
Class designation acc. DIN 12876 | III |
Identification according to DIN 12876 | FL |
Heat output | 2000 W |
Working temperature | room temp. +10K @1000rpm - 150 °C |
Operating temperature min. (with external cooling) | -20 °C |
Temperature display | yes |
Temperature control | PT 100 |
Working temperature sensor | PT 100 |
Safety temperature sensor | PT1000 |
Working temperature display | LED |
Safety temperature display | LED |
Temperature stability DIN 12876 | ±0.02 K |
Display resolution | 0.1 K |
Display for operation with ext. sensor | yes |
Set temperature resolution | ±0.1 K |
Warning function optical | yes |
Warning function acoustic | yes |
Warning function excess temperature | yes |
Adjustable safety circuit | 0 - 160 °C |
Sub-level protection | yes |
Over-level protection | yes |
Pump type | Pressure- / suction pump |
Pump capacity adjustable | yes |
Pump pressure max. (0 liters discharge flow) | 0.3 bar |
Pressure pump (suction side) (0 liter flow) | 0.2 bar |
Flow rate max. (0 bar back pressure) | 18 l/min |
Bath depth min. | 150 mm |
Calibration option | yes |
Appliance fastener | clamp |
Technical data complies with the standard | DIN 12876 |
Permissible ON time | 100 % |
Dimensions (W x H x D) | 145 x 340 x 200 mm |
Weight | 10.5 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | yes |
USB interface | yes |
Voltage | 230 V |
Frequency | 50/60 Hz |
Power input | 2100 W |
