IKA I-MAG Industry Magnetic Stirrers (1500rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0020109200

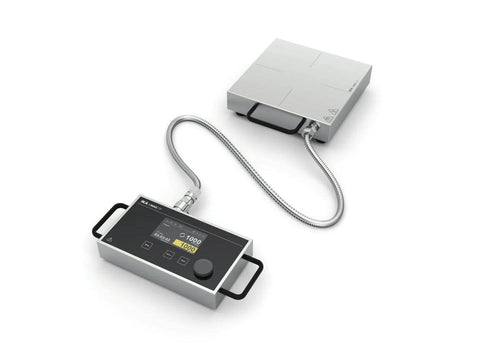

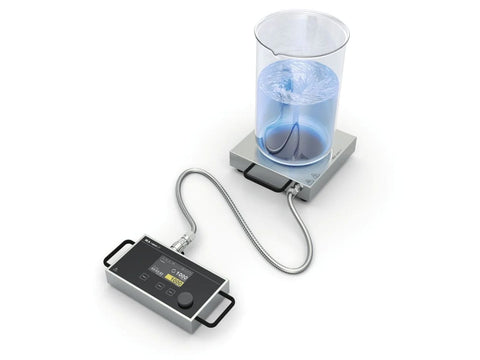

I-MAG is a powerful yet compact magnetic stirrer for applications in laboratory and production environments.

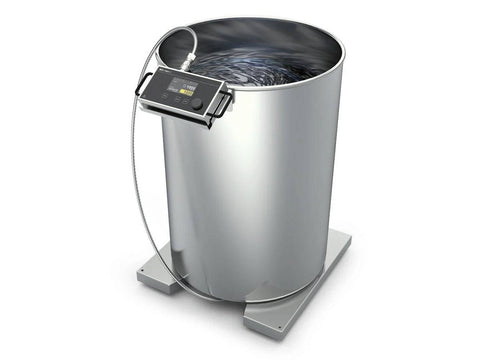

In combination with the I-MAG SP set-up frames for large vessels, which are available as accessories, up to 300 liters of water can be mixed efficiently. The wired operating unit (controller) ensures convenient handling and simple integration into e.g. process engineering systems.
The robust drive unit (IP protection class 64) consists of the high-torque and wear-free motor and the magnetic coupling with high-performance neodymium magnets. This enables the effective mixing of viscous media as well as mixing in vessels with a larger distance between the installation surface and the stirring rod (e.g. double-walled containers or vessels with insulated bottoms).
In order to reliably achieve high speeds even under difficult conditions, I-MAG has an adjustable start-up speed that prevents the magnetic stirring bar from breaking off during the acceleration phase. Process reliability is additionally achieved by the integrated detection of the magnetic stirring bar coupling. In the event of a tear-off or failure of the magnetic coupling, the user is informed via the operating unit.
The I-MAG controller has a variety of digital and analog interfaces. Equipped in this way, the device can, for example, be controlled with a foot switch or operating button or can be integrated into a network via USB/LAN/WIFI. With appropriate software (for example labworldsoft® 6), I-MAG can thus be integrated into an automated plant process.
- Drive with very high IP protection class 64: unrestricted use even under harsh environmental conditions thanks to enclosed stainless steel housing
- Electronically controlled motor for very stable speeds even under load for reproducible results
- Secure and ergonomic mounting of the controller directly on the vessel or with a stand rod using the I-MAG UHC universal holder (available as accessory)
- Multilingual menu navigation
Scope of delivery
- I-MAG Industry stirrer
- IKAFLON 90 slide
- USB cable
- Adapter for analog interface (3 pcs.)
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA I-MAG Industry Magnetic Stirrers (1500rpm)
|Number of stirring positions||1|
|Speed deviation||±10 rpm|
|Stirring quantity max. per stirring position (H2O)||300 L|
|Maximum load||75 kg|
|Stirring quantity max. (without extension platform I-MAG SP)||50 l|
|Motor rating output||90 W|
|Direction of rotation||right / left|
|Speed display set-value||TFT|
|Speed display actual-value||TFT|
|Speed adjustment||Turning knob|
|Speed range||100 - 1500 rpm|
|Setting accuracy speed||10 rpm|
|Stirring bar length||30 - 140 mm|
|Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)||+26 K|
|Set-up plate material||stainless steel 1.4301|
|Set-up plate dimensions||260 x 260 mm|
|Automatic reverse rotation||yes|
|Break detection stirring bar||yes|
|Time setting range||1 - 14399 min|
|Analog pedal control||yes|
|Cable from controller to device||2000 mm|
|Dimensions (W x H x D)||260 x 70 x 300 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 64 / IP 22|
|RS 232 interface||yes|
|Voltage||100 - 240 V|
|Power input||140 W|
|Power input standby||5 W|
