IKA HBR 4 Control Heating Baths (200°C) - MSE Supplies LLC

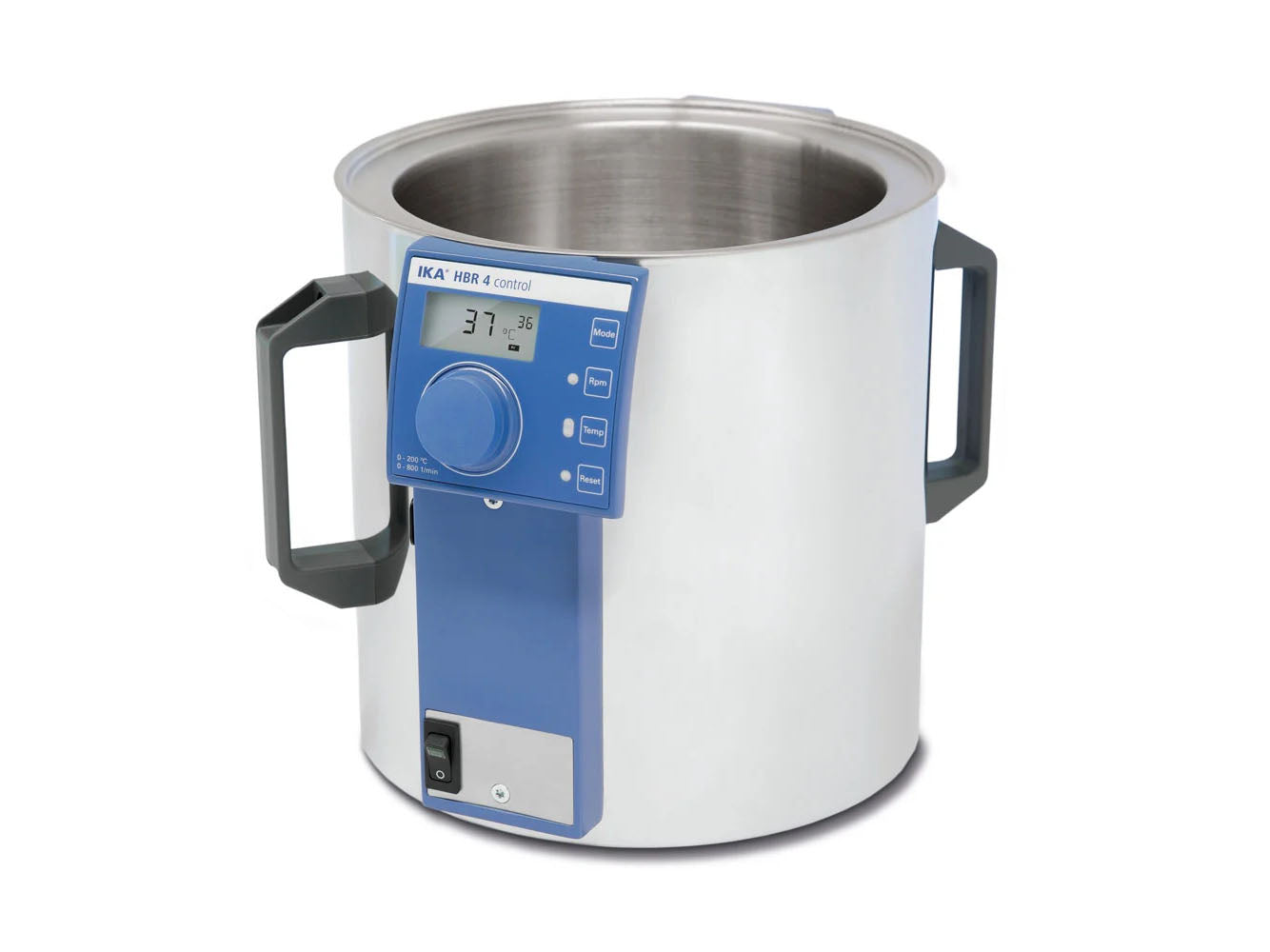

IKA HBR 4 Control Heating Baths (4L, 200°C)

  • $ 5,68200
  • Save $ 11600

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number:  0020005142

The heating bath is noted for:

  • Cylindrical bath shape
  • Heating elements integrated into the bath base
  • Heat transfer media can be low-viscous oil (50 mPas) or water (H2O)
  • Useful volume: approx. 4 l
  • Heat output: 1000 W
  • Two carry handles
  • Infinitely variable safety temperature limiter according to DIN 12877
  • Double-jacketed mantle protection against burns -
  • Digital display for target, actual and safety temperatures as well as speed
  • Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
  • RS 232 interface
  • Heating bath can be operated with an external temperature sensor for temperature control directly in the medium

Scope of delivery

  • HBR 4 control
  • PT 1000.60 Temperature sensor, stainless steel

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA HBR 4 Control Heating Baths (4L, 200°C)

Heat output 1000 W
Heating temperature range room temp. - 200 °C
Heat control stepless
Set temperature resolution ±1 K
Controller oscillation (3 l water / 90 °C) ±1 K
Controller oscillation (3l Silicone oil / 50mPas / 150°C) ±2 K
Speed display LCD
Speed adjustment stepless
Speed range 150 - 800 rpm
Motor rating input 5 W
Motor rating output 1 W
Filling volume max. 4 l
Filling point min. 20 mm
Material in contact with medium stainless steel 1.4301
Connection for ext. temperature sensor PT1000
Adjustable safety circuit 50 - 210 °C
Class designation acc. DIN 12876 II
Outer diameter 250 mm
Inner diameter 200 mm
Outer height 250 mm
Inner height 160 mm
Dimensions (W x H x D) 340 x 250 x 340 mm
Weight 5.6 kg
Permissible ambient temperature max. 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
Voltage 115 V
Frequency 50/60 Hz
Power input 1020 W
