IKA HABITAT Ferment sw 2 Bioreactors (2200 rpm, 5°C) - MSE Supplies LLC

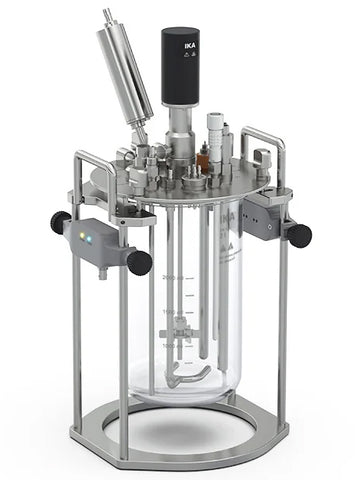

IKA HABITAT Ferment sw 2 Bioreactors (2200 rpm, 5°C)

  • $ 11,04895
  • Save $ 1,32600


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010007658

The 2 l vessel package for the bioreactor HABITAT research contains a 2 l single-walled glass vessel for fermentation applications as well as the appropriate stirring drive. Together with the separately available control tower package (e.g. HABITAT ferment) you receive all necessary components for a successful cultivation. The scope of delivery of the HABITAT ferment 2 and 5 l vessels includes a cooling finger for temperature control / cooling in the medium. We recommend its use in conjunction with one of our chillers, such as the RC 2 lite.

Scope of delivery

  • Stand 2
  • HA.cf.2 Cooling finger
  • HA.gv.sw.2 Glass vessel, single-wall
  • HA.mt.s.2 Motor, small
  • HA.hp.s.2 Harvest pipe, straight
  • HA.ino Port for inoculation
  • HA.ba.2 Baffle
  • HA.sp.r.2 Ring sparger, 0.5 mm
  • HA.cn Condenser
  • HA.ip.b.2 6-blade segment impeller
  • HA.s.tm.2 Temperature sensor
  • HA.s.ph.2 pH sensor
  • HA.s.do.2 DO sensor
  • HA.s.fo Foam sensor
  • HA.s.lv.2 Level sensor
  • HA.cab.sw Cable and tube set
  • HA.sf.250 Sample flask (4 pcs.)

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA HABITAT Ferment sw 2 Bioreactors (2200 rpm, 5°C)

Reactor Fermenter
Volume 2 l
Type single wall
Multi use yes
Autoclavable yes
Inner diameter 130 mm
Ratio = height / inner diameter 2
Useable volume min. 0.6 l
Useable volume max. 3.0 l
Reactor vessel material borosilicate glass
Reactor lid material stainless steel 1.4404
Net weight reactor vessel 1.42 kg
Net weight reactor assembled 9.11 kg
Number lid ports 14
Lid ports (Baffle) 1
Lid ports (pH) 1
Lid ports (Reserve) 3
Lid ports (Condenser) 1
Lid ports (Cooling Finger) 1
Lid ports (Inoculation) 1
Lid ports (Harvest Pipe) 1
Lid ports (Sparger) 1
Lid ports (Feed) 0
Lid ports (4in1) 1
Lid ports (Temperature) 1
Lid ports (DO) 1
Lid ports (Level) 1
Material in contact with medium AISI 316L, borosilicate glass 3.3, silicone USP class VI
Motor coupling shaft feedthrough
Harvest pipe outer diameter 6 mm
Harvest pipe inner diameter 4
Harvest pipe design straight
Harvest pipe, height adjustable yes
Feeding port, outer diamter 4.5 mm
Feeding port, inner diamter 2 mm
Feeding port, amount 4
Inoculation port, outer diamter 6 mm
Inoculation port, inner diameter 4 mm
Sparger Ring sparger
Sparger, outer diameter 8 mm
Sparger, inner diameter 6 mm
Sparger pore size 500 μm
Cooling finger yes
Cooling finger connection threat M27x3 mm
Cooling finger water connection, outer diamter 8 mm
Stirrer design Propeller stirrer, 6-bladed
Stirrer diameter 6 blade impeller 48 mm
Ratio = stirrerdiameter 6blade / inner diameter reactor 0.37
Stirrer quantity 1
Condenser yes
Condenser, connection threat M16x2
Type of cooling Vertical condenser
Condenser Temperature min. 5 °C
Temperature min. / Condenser with Peltier 15 °C
Temperature min. / Condenser with water cooling 5 °C
Filtertype sterile filter
Filtermaterial PTFE reinforced with PP
Filter housing material PP
Pore size 0.22 μm
Filter heater yes
Spin filter 40 μm
Baffle Accessory
Temperature measuring yes
Working temperature sensor PT1000
pH sensor yes
pH sensor connection threat PG 13.5
pO2 sensor yes
pO2 sensor connection threat PG 13.5
Level sensor IKA HA.s.lv
Foam sensor IKA HA.s.fo
Turbidity sensor Accessory
Conductivity sensor Accessory
CO2 sensor Accessory
Speed max. 2200 rpm
Dimensions (W x H x D) 230 x 490 x 230 mm
