IKA C-MAG HP 4 Hot Plates (500°C) - MSE Supplies LLC

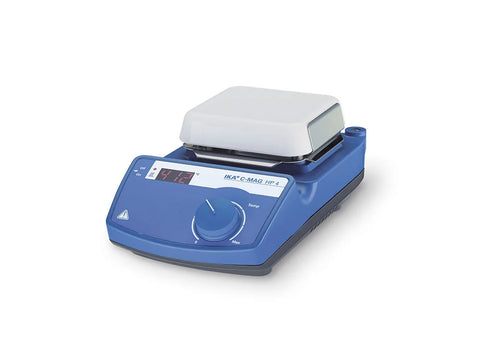

IKA C-MAG HP 4 Hot Plates (500°C)

  • $ 48500
  • Save $ 4900


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0003581601

Hotplate made of ceramic glass which offers excellent chemical resistance.

  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Exact temperature setting via digital display (LED)
  • Digital error code display
  • Elevated control panel for protection against leaking liquids

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA C-MAG HP 4 Hot Plates (500°C)

Number of heating points 1
Heat output 250 W
Heating temperature range 50 - 500 °C
Heat control Turning knob
Set temperature resolution ±10 K
Volume max. 5 l
Heating rate heating plate 2.5 K/min
Set-up plate material ceramic
Set-up plate dimensions 100 x 100 mm
Dimensions (W x H x D) 150 x 105 x 260 mm
Weight 3 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 120 V
Frequency 50/60 Hz
Power input 255 W
